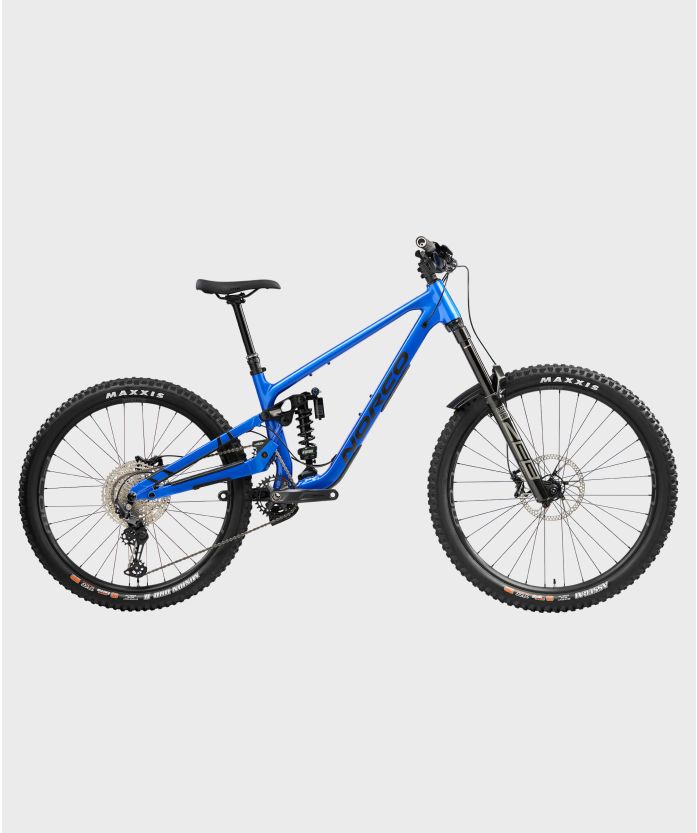

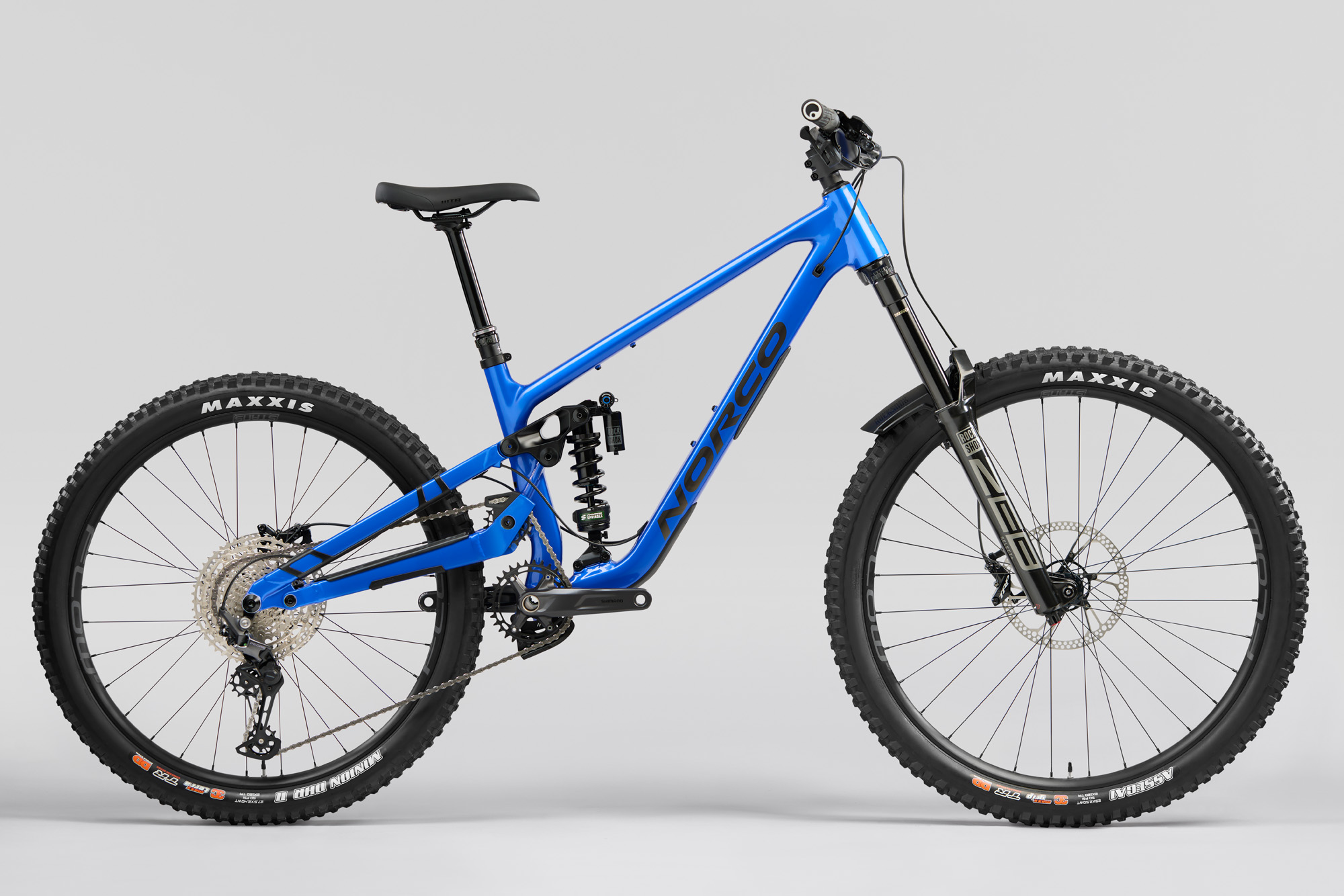

Norco Sight 160 A2 29"/27.5" Bike

Name: Norco Sight 160 A2 29"/27.5" Bike
Brand: Norco
Price: 3999 GBP
Availability: InStock

Be the first to review this product

SKU

VAR-NO-0611115134

From £3,999.00 £3,332.50

Trade Only Item

TRADE ONLY ITEM
Discipline: All-Mountain
Mixed/Mullet (27.5/29")
Rear Travel: 160mm
Frame Material: Aluminium

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Details

The Sight 160 is next level - big travel, big spec, and ready for big mountain riding. Whether you're out racing an enduro or love going fast on technical trails, this is your bike to blow through the chunder. Inspired by the gnarliest trails in the backwoods of BC, built for riders living in areas where the terrain demands more out of the bike they ride.

TERRAIN-TAILORED SUSPENSION

Sight’s High Pivot Horst Link suspension platform features 160mm of net vertical travel in a rearward axle path to absorb high-speed, square-edge impacts to maintain momentum and control.

BALANCED PEDALING

Sight’s chainstay-mounted, dynamic idler positioning creates an All-Mountain-tuned anti-squat curve with minimal kickback under heavy impacts, and provides superior traction on technical climbs with efficient pedaling.

FORCE SEPARATION

Sight’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

GEOMETRY

With stabilised rear centres and seat tube angles varied by frame size to ensure consistent rider weight distribution and shorter seat tubes with long dropper posts keep the saddle out of the way on technical descents the Sight is known for, the Sight 160 features a slacker headtube angle and a slightly taller bottom bracket than our standard Sight geometry to accommodate all the G's you push and obstacles you roll.

SIZE & STYLE

Sight’s All-Mountain manners define Norco Ride Performance. With size-specific Rear- Centres & Seat Tube Angles unique to all 5 frame sizes, you’re sure to find the perfect fit for your size & style.

SUSPENSION

Bigger, steeper, better, badder - we've taken the confidence-inspiring stability of a Sight and made it more. Supported up front with a 170mm fork and in the rear with a longer 65mm stroke shock for 160mm; giving the Sight all you need for attacking tech and rougher, BC-inspired trails.

NEW TECHNOLOGY

Sight 160 is an all-round beefier build to handle everything you throw down. We've stepped up on spec to help you handle more; a 35mm rise bar, big name brakes with metallic pads, Double Down rear tire casing, and coil rear shock with Sprindex spring to ride hard.

RIDE ALIGNED™

Perfect fit, dialed handling and personalised setup in minutes.

The Ride Aligned™ Design System matches each Sight to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.

SPECIFICATION

FRAME	Aluminum Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
FORK	Rockshox Zeb Select+ Charger 3.1, 170mm travel, 44mm offset, Fender Included
REAR SHOCK	Rockshox Vivid Coil Select+, 205x65mm TR , Sprindex Spring
HEADSET	FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 \| ZS56/40 )
GRIPS	Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5)
HANDLE BAR	OneUp Aluminum, 800mm , 35mm rise
STEM	OneUp 42mm Length , 35mm Clamp
SEAT POST	TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)
SADDLE	WTB Volt 250
FRONT BRAKE	TRP Trail Evo, 4 Piston, Resin Pads
FRONT BRAKE ROTOR	TRP TR203, 203mm, 2.3mm Thickness, 6-bolt
REAR BRAKE	TRP Trail Evo, 4 Piston, Resin Pads
REAR BRAKE ROTOR	TRP TR200, 200mm, 2.3mm Thickness, 6-bolt
BRAKE LEVERS	TRP Trail Evo, 4 Piston
SHIFTER REAR	Shimano Deore SL-M6100, 12sp
REAR DERAILLEUR	Shimano Deore RD-M6100, 12sp
CASSETTE	Shimano Deore CS-M6100-12, 12 Speed, 10-51T
CHAIN	Shimano Deore CN-M6100, 12sp
CRANKSET	Shimano Deore FC-MT6120-1, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
BOTTOM BRACKET	Shimano Sealed Bearing, BSA 73mm
CHAIN GUIDE	Norco idler guide cover and lower guard
FRONT HUB SKEWER	Shimano HB-M7110-B,15x110mm,32H, 6-bolt
REAR HUB	Shimano FH-M7110 SLX, 12x148mm Boost, Micro Spline, 32H, 6-bolt
SPOKES/NIPPLES	Sapim Race butted 2.0/1.8/2.0, 14G, stainless steel
RIMS	Stan’s Flow S2, 32H, F- 29", R-27,5", 30mm ID
FRONT TYRE	Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
REAR TYRE	Maxxis Minion DHR II, 3C Maxx Terra DD, 27.5.5x2.4", Folding

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

		1	2	3	4	5
	WHEEL SIZE	29"/27.5"
	RIDER HEIGHT (FT)	5'1-5'5"	5'4-5'8"	5'7-5'11"	5'10-6'2"	6'1-6'5"
	RIDER HEIGHT (CM)	155.0-165.0	162.5-172.5	170.0-180.0	178.0-188.0	185.5-195.5
	TRAVEL (MM FRONT / MM REAR)	170/160mm
	REACH	416	441	466	491	516
	STACK	618	627	636	645	654
HTA	HEAD TUBE ANGLE	63.5
OS	FORK OFFSET	44
ST	SEAT TUBE LENGTH	350	370	385	430	445
STA	EFFECTIVE SEAT TUBE ANGLE	76.3	76.5	77	77.3	77.5
RC	REAR CENTRE LENGTH	420	424	428	432	436
BB	BOTTOM BRACKET DROP	20.5/0
BBH	BOTTOM BRACKET HEIGHT	357.5
HTT	HORIZONTAL TOP TUBE	567	591	615	639	663
WB	WHEELBASE	1187	1220	1253	1287	1320
SOH	STANDOVER	678	684	690	713	725
HT	HEAD TUBE LENGTH	105	115	125	135	145
	TRAIL	135
	RECOMMENDED SEATPOST DROP	150	170	200	200	230
	MAXIMUM POST INSERTION	250	270	300	300	330
	STEM LENGTH	40
	CRANK LENGTH	170
	TYRE SIZE	2.35" - 2.6"
	WATER BOTTLE COMPATIBLE	1 x 750ml
