ARMEGA SP25

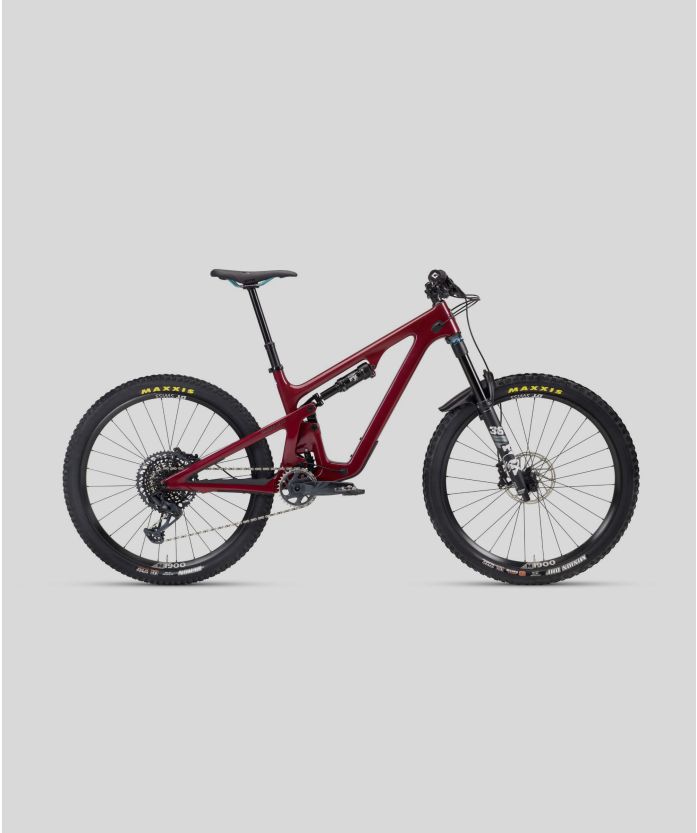

Yeti Cycles SB135 C-Series C2 27.5" Bike
SKU
VAR-YCB24135CXSPCYPAC026500
Trade Only Item
- TRADE ONLY ITEM
- Discipline: Trail
- Material: Carbon Fibre
- Rear Travel: 135mm / Fork Travel: 150mm
SB135
Begging for your input, chomping to respond. Flick it, pedal it, pump it to the moon. A stoke-making mutation of fun-focused DNA, blinding proof that less can be a whole lot more. Come out to play. You bet your ass the SB135 is... still down.
135MM
FRAME TRAVEL
160MM
FORK TRAVEL
14%
LEVERAGE RATE
27.5"
WHEEL SIZE
65°
HEAD TUBE ANGLE
76.5°
EFF. SEAT ANGLE
HIGHLIGHTS
- Lunch Ride (LR) builds featuring 160mm Fox Factory 36 & Fox Float X
- Maxxis ASSEGAI 2.5 & DHR II 2.4 EXO+ casing
- and more powerful brakes with larger rotors
- Fox Transfer dropper post
- DT Swiss CUSTOM EX Wheels
- 4 piston brakes
- ODI Elite Pro grips
- 200 front and rear rotor
FRAME HIGHLIGHTS
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Boost spacing
- Lunch Ride available in sizes MD-XL
DART. WEAVE. DRIFT.
There's main lines and race lines. And then there's the completely unexpected lines that requires a rider with a different headspace all together. Riders looking to find the fun love of the SB135 for its quick-witted playfulness, agility and its ability to unlock creativity.
SIZE GUIDE
| MEDIUM | 5'5" - 5'11" | |||||
| LARGE | 5'10" - 6'3" | |||||
| X-LARGE | 6'1" - 6'7" |
SPECIFICATION
C/Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
| FORK | FOX PERFORMANCE 36/150MM |
| SHOCK | FOX PERFORMANCE FLOAT |
| TYRE (F) | MAXXIS MINION DHF 2.6 EXO |
| TYRE (R) | MAXXIS REKON 2.6 EXO |
| ROTOR (F) | SRAM CENTERLINE 180 |
| ROTOR (R) | SRAM CENTERLINE 180 |
| HEADSET | CANE CREEK 40 INTEGRATED |
| WHEELSET | DT SWISS M1900 30MM |
| BB | SRAM DUB BSA 73 |
| GRIPS | ODI ELITE PRO |
| BAR | BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| CRANK | SRAM GX EAGLE 30T 170MM |
| SADDLE | SILVERADO CUSTOM |
| BRAKES | SRAM G2 R |
| DERAILLEUR | SRAM GX EAGLE |
| CASSETTE | SRAM GX EAGLE 1275 10-52 |
| CHAIN | SRAM GX EAGLE |
| SHIFTER | SRAM GX EAGLE |
| SEATPOST | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XL: 210MM |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 160MM FORK | MD | LG | XL | |
| A | SEAT TUBE LENGTH | 400 | 440 | 470 |
| B | EFF. TOP TUBE LENGTH | 569 | 621 | 649 |
| C | HEAD TUBE ANGLE | 65 | 65 | 65 |
| D | EFF. SEATTUBE ANGLE | 76.5 | 76.5 | 76.5 |
| E | ACTUAL SEATTUBE ANGLE | 71.6 | 71.6 | 71.9 |
| F | CHAINSTAY LENGTH | 433 | 435 | 437 |
| G | WHEELBASE | 1203 | 1229 | 1261 |
| H | ESTIMATED BB HEIGHT | 340 | 340 | 340 |
| I | STANDOVER | 718 | 721 | 725 |
| J | HEADTUBE LENGTH | 107 | 118 | 129 |
| K | FORK (AXLE TO CROWN) | 558 | 558 | 558 |
| L | FORK (OFFSET) | 37 | 37 | 37 |
| M | STACK | 600 | 610 | 620 |
| N | REACH | 455 | 475 | 500 |
| O | FRONT CENTER | 770 | 794 | 824 |
| P | VERTICAL FORK TRAVEL | 145 | 145 | 145 |
| Brand | Yeti Cycles |
|---|
