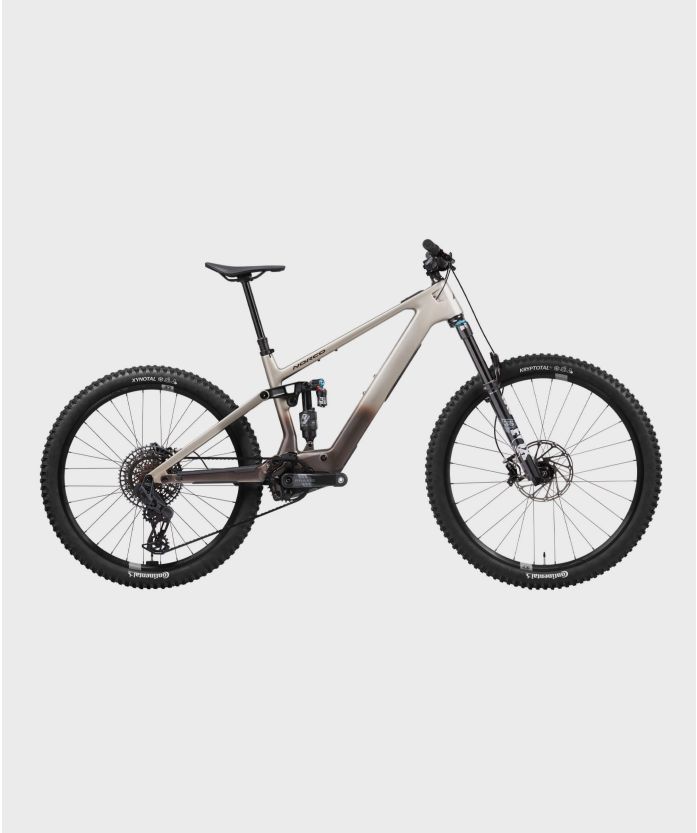

Norco Fluid VLT C1 27.5/29" Bike

Norco
SKU
VAR-NO-0234514124
From £9,999.00 £8,332.50
Trade Only Item
  • Discipline: Trail
  • Wheelsize: Mixed/Mullet (27.5/29")
  • Rear Travel: 140mm
  • Frame Material: Carbon Fibre
  • Motor: Bosch PL SX

Fluid VLT Wordmark



Organic Trail performance and supernatural power.

Ride faster & ride more with Fluid VLT’s lightweight agility and next-level Bosch drive system. The new Fluid VLT is coming SPRING 2024.

Norco Fluid VLT Bike

ORGANIC TRAIL RIDE

The natural, agile ride feel you’re looking for in your next e-MTB.

Reactive, playful ride performance with Ride Aligned™ Trail geometry featuring size-specific Rear-Centres & Seat Tube Angles, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.

RIDER-FIRST SUSPENSION

Precision Ride Aligned™ Trail suspension design and kinematics.

Optimized Ride Aligned™ suspension design & setup with Trail optimized kinematics, reactive pedal-efficiency and the simplicity of precision-tuned Horst Link suspension. Available in gram-focused 130/140mm and all-in 140/150mm travel options.

Norco Optic Frame Detail Norco Optic Frame Detail Norco Optic Frame Detail Norco Optic Frame Detail

POWERED BY BOSCH

The finest in light weight e-MTB power from Germany.

All-new, fully integrated Bosch Performance Line SX wireless ecosystem sheds significant e-MTB weight in a natural feeling, intuitive package with industry-leading reliability and rider support.

BIG POWER, LITTLE PACKAGE

Evolved e-MTB technology delivers the ride you’re looking for.

High power Bosch Performance Line SX drive unit provides 55Nm of quiet torque and up to 600w of power with 50% reduced pedal resistance and a near-traditional crank stance.

Bosch ebike app flow

CUSTOMIZE YOUR FLOW

High tech features, customization & security.

Custom Norco/Bosch eBike Flow App allows you to plan your ride, track your stats, schedule maintenance and determine your optimum balance of assist and range from the comfort of your phone.

Norco Optic Frame Detail Norco Optic Frame Detail

ZOOM IN

Laser focus on performance optimization and system integrity.

Dedicated Bosch CompactTube 400Wh battery is removable for service and replacement but is engineered to remain within the frame between rides to prioritize performance and weight savings. Every size Fluid VLT can also connect to an optional Bosch 250Wh range extender battery, sold separately and available through your local dealer.

Find your focus

ELECTRIC ENLIGHTENMENT

Engineered and spec’d for lightweight capability.

Lightweight carbon frame & gram-conscious, but uncompromised component selection, like 31.6mm droppers that provides VLT e-MTB benefits at near-non-electric weight.

RIDE ALIGNED™

Perfect fit, dialed handling and personalized setup in minutes.

The Ride Aligned™ Design System matches each Fluid VLT to the human who rides it. Rider-First geometry and suspension kinematics are precision tuned in minutes with the Ride Aligned™ Bike Setup Guide.

SPECIFICATION

FRAMEFluid VLT Carbon Front Triangle, Carbon SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
FORK Fox 36 Performance Elite, 29", 150mm Travel, 44mm Offset
REAR SHOCKFox FLOAT X2 Performance Elite, 185x55mm Trunnion
HEADSETFSA No. 57 ZS, Carbon Top Cover
HEADSET SPACERCarbon, 2x10mm, 1x5mm
GRIPSWTB Wavelength Grip
HANDLE BAROne Up Carbon 800mm, 20mm Rise
STEM Norco SL 6061 Alloy 40mm Length, 35mm Clamp
SEAT POST One Up Travel Adjust Dropper, 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
SADDLEFizik Ridon
FRONT BRAKESRAM Code Silver Stealth, 4-Piston, Metallic Pads
FRONT BRAKE ROTORSRAM Centreline, 200mm
REAR BRAKESRAM Code Silver Stealth, 4-Piston, Metallic Pads
REAR BRAKE ROTORSRAM Centerline 180mm
BRAKE LEVERSSRAM Code Silver Stealth 4-Piston
SHIFTER REARSRAM Pod Ultimate Controller
REAR DERAILLEURSRAM X0 Eagle AXS T-Type
CASSETTESRAM 1295 T-Type, 10-52T
CHAIN SRAM XO Eagle T-Type
CRANKSETPraxis Carbon Bosch, 165mm
BOTTOM BRACKETBosch PLSX
FRONT HUBCrank Bros. Synthesis Alloy, 110x15mm Boost, 6-Bolt
REAR HUBCrank Bros. Synthesis Alloy, 148x12mm Boost, Star Ratchet, 6-Bolt, XD
RIMSCrank Brothers Synthesis Alloy Wheelset Enduro E-Bike, 27.5" Rear, 29" Front.
FRONT TYREContinental Kryptotal 29" x 2.4" Trail
REAR TYREContinental Xynotal 27.5" x 2.4" Trail
DRIVE UNITBosch Performance Line SX
BATTERYBosch CompactTube 400 Wh

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.


Size 1 Size 2 Size 3 Size 4 Size 5
WHEEL SIZE 29/27.5"
RIDER HEIGHT (FT) 5'1-5'5" 5'4-5'8" 5'7-5'11" 5'10-6'2" 6'1-6'5"
RIDER HEIGHT (CM) 155.0-165.0 162.5-172.5 170.0-180.0 178.0-188.0 185.5-195.5
TRAVEL (MM FRONT / MM REAR) 150/140mm
REACH 422.5 447.5 472.5 497.5 522.5
STACK 610 619 628 637 646
HTA HEAD TUBE ANGLE 64.5
OS FORK OFFSET 44
ST SEAT TUBE LENGTH 385 395 415 445 475
STA EFFECTIVE SEAT TUBE ANGLE 76.50 76.75 77.00 77.25 77.50
RC REAR CENTRE LENGTH 432 432 436 440 444
BB BOTTOM BRACKET DROP 28/8
BBH BOTTOM BRACKET HEIGHT 350
HTT HORIZONTAL TOP TUBE 569 593 618 642 666
WB WHEELBASE 1181 1210 1243 1277 1310
SOH STANDOVER 715 701 703 720 743
HT HEAD TUBE LENGTH 100 110 120 130 140
TRAIL 132
RECOMMENDED SEATPOST DROP 125 150 170 200 200
MAXIMUM POST INSERTION 240 250 270 300 330
STEM LENGTH 40
CRANK LENGTH 165
TYRE SIZE 2.35" - 2.6"
WATER BOTTLE COMPATIBLE 1 x 620ml 1 x 750ml 1 x 750ml 1 x 750ml 1 x 750ml
