ARMEGA SP25

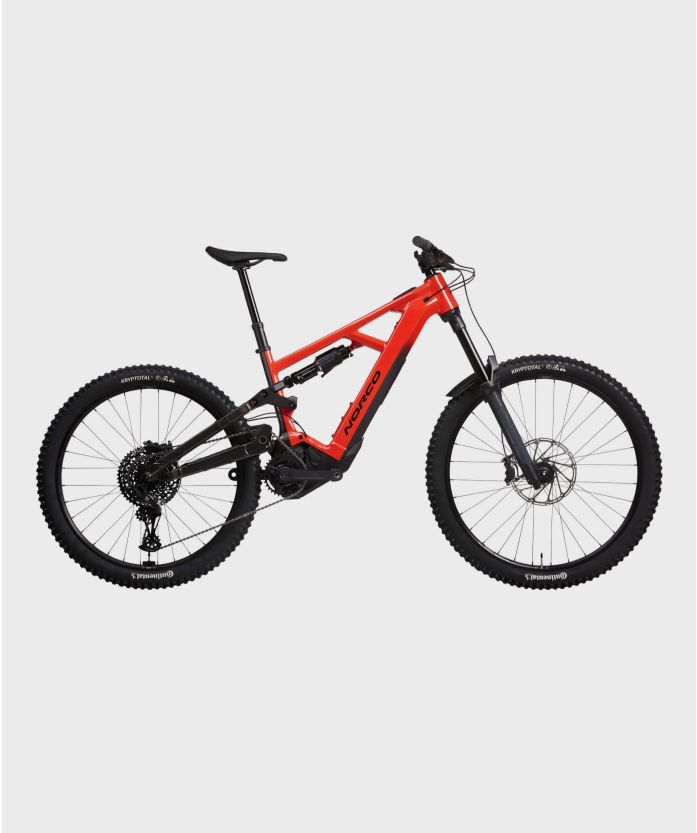

Norco Range VLT A1 27.5/29" Bike

- Discipline: Enduro
- Wheelsize: Mixed/Mullet (27.5/29")
- Rear Travel: 170mm
- Frame Material: Aluminium
- Motor: Bosch CX Smart System
Range VLT is built different, over-delivering on every trail.
Meet the Range VLT, with 180/170 mm of travel, made for riders who are into tackling rowdy terrain and then taking it up another notch into absolute beast mode. Whether riding up or down, the all-day battery means you don’t need to pick one trail; you can take them all.
With increased rearward axle path, idler, and innovative VPSHP suspension layout, the new Range VLT shatters the standard e-MTB mold, set to get you anywhere and everywhere. The fully integrated Bosch Performance Line CX Smart System is compact in size but high in power. With 85Nm of torque and a 750Wh long-distance battery, the Range VLT is the next level in capability to go the distance and descend with confidence.
TERRAIN-TAILORED SUSPENSION.
Range VLT’s High Pivot Horst Link suspension platform features 170mm of rearward axle path travel to absorb high-speed, square-edge impacts to maintain momentum and control with minimal kickback.
PERFECT PEDALING
Range VLT’s chainstay-mounted, dynamic idler positioning creates an Enduro-tuned antisquat curve with minimal kickback under heavy impacts, and provides superior traction on technical climbs with efficient pedaling.
PRECISION KINEMATICS
Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 65mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.
SIZE & STYLE
Range VLT’s e-Enduro performance was honed on the world’s toughest trails in the Backwoods of BC. With size-specific Rear-Centres & Seat Tube Angles across 5 frame sizes, you’re sure to find the perfect fit for your size & style.

MIXED WHEELS
The Range VLT is engineered around a 29”/27.5” MX wheelset to take advantage of the inherent agility and confidence that e-MTB riders need.
POWERED BY BOSCH
Fully integrated Bosch Performance Line CX wireless ecosystem provides 85Nm of torque and up to 340% rider assist on Big Mountain and Enduro excursions.
MASSIVE CAPACITY
Bosch PowerTube 750Wh battery is removable for off-bike charging or to quickly install an aftermarket 500 or 625Wh option that slides in easily and is secured in place with German precision and reliability. 250Wh range extender compatible with the S3/S4/S5.
RIDE ALIGNED™
Perfect fit, dialed handling and personalized setup in minutes.
The Ride Aligned™ Design System matches each Range VLT to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.
SPECIFICATION
FRAME | Butted Aluminum, High Pivot Horst Suspension, 170mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
FORK | RockShox Zeb Select, 180mm Travel, E-MTB Rated |
REAR SHOCK | RockShox Vivid Base, 230x65mm |
HEADSET | Sealed Bearing, Tapered |
HEADSET SPACER | 2x10mm - Black |
GRIPS | VP Lock-On |
HANDLE BAR | Butted 6061 Alloy, 780mm, 20mm Rise |
STEM | 6061 Alloy, 50mm Length, 35mm Clamp |
SEAT POST | TranzX YS134 Dropper, 34.9mm 150mm (S1), 170mm (S2, S3), 200mm (S4, S5) |
SADDLE | SDG Bel Air V3 Lux Alloy |
FRONT BRAKE | SRAM DB8 4 Piston, Sintered Pads |
FRONT BRAKE ROTOR | SRAM Centerline 220mm |
REAR BRAKE | SRAM DB8 4 Piston, Sintered Pads |
REAR BRAKE ROTOR | SRAM Centerline 200mm |
BRAKE LEVERS | SRAM DB8 |
SHIFTER REAR | SRAM NX Eagle MMX |
REAR DERAILLEUR | SRAM NX Eagle |
CASSETTE | SRAM PG1210 Eagle 11-50T |
CHAIN | SRAM SX Eagle |
CRANKSET | e*Thirteen e*Plus 165mm |
BOTTOM BRACKET | Bosch BES3 DU |
FRONT HUB | Bear Pawls BMB-013, 15x110mm Boost, 6 Bolt |
FRONT HUB SKEWER | Rock Shox Maxle Stealth 110x15 |
REAR HUB | Bear Pawls BMB-008, 12x148mm Boost, HG, 6 Bolt |
SPOKES/NIPPLES | Sapim Sprint Butted Stainless Black |
RIMS | WTB HTZ Trail 32H, 27.5"/29" |
FRONT TYRE | Continental Kryptotal-F Enduro 29" x 2.4", Foldable |
REAR TYRE | Continental Kryptotal Enduro 27.5" x 2.4", Foldable |
DRIVE UNIT | Bosch Performance Line CX |
BATTERY | Bosch PowerTube 750 Wh |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
1 | 2 | 3 | 4 | 5 | ||
WHEEL SIZE | 29/27.5" | |||||
RIDER HEIGHT (FT) | 5'1-5'5" | 5'4-5'8" | 5'7-5'11" | 5'10-6'2" | 6'1-6'5" | |
RIDER HEIGHT (CM) | 155.0-165.0 | 162.5-172.5 | 170.0-180.0 | 178.0-188.0 | 185.5-195.5 | |
TRAVEL (MM FRONT / MM REAR) | 180/170mm | |||||
REACH | 417.5 | 442.5 | 467.5 | 492.5 | 517.5 | |
STACK | 621 | 630 | 639 | 648 | 657 | |
HTA | HEAD TUBE ANGLE | 63.0 | ||||
OS | FORK OFFSET | 44 | ||||
ST | SEAT TUBE LENGTH | 385 | 395 | 415 | 445 | 475 |
STA | EFFECTIVE SEAT TUBE ANGLE | 76.50 | 76.75 | 77.00 | 77.25 | 77.50 |
RC | REAR CENTRE LENGTH | 428 | 432 | 436 | 440 | 444 |
BB | BOTTOM BRACKET DROP | 19/2 | ||||
BBH | BOTTOM BRACKET HEIGHT | 359 | ||||
HTT | HORIZONTAL TOP TUBE | 567 | 591 | 615 | 639 | 663 |
WB | WHEELBASE | 1202 | 1235 | 1269 | 1302 | 1336 |
SOH | STANDOVER | 713 | 718 | 732 | 743 | 754 |
HT | HEAD TUBE LENGTH | 100 | 110 | 120 | 130 | 140 |
TRAIL | 143 | |||||
RECOMMENDED SEATPOST DROP | 125 | 150 | 170 | 200 | 200 | |
MAXIMUM POST INSERTION | 225 | 250 | 275 | 300 | 300 | |
STEM LENGTH | 40 | |||||
CRANK LENGTH | 165 | |||||
TYRE SIZE | 2.35" - 2.6" | |||||
WATER BOTTLE COMPATIBLE | 1 x 750ml |
Brand | Norco |
---|---|
Wheel Size | Mixed |
