Norco Sight VLT C3 27.5/29" Bike

Name: Norco Sight VLT C3 27.5/29" Bike
Brand: Norco
Price: 6299 GBP
Availability: InStock

Be the first to review this product

SKU

VAR-NO-0283915125

From £6,299.00 £5,249.17

Trade Only Item

Discipline: All-Mountain
Wheelsize: Mixed/Mullet (27.5/29")
Rear Travel: 150mm
Frame Material: Carbon
Motor: Bosch Performance Line CX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Details

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.

NEW TECHNOLOGY

The perfect blend of power and low weight
Quieter motor – all you hear is the trail
Maximum drive unit durability
Train harder, ride longer
Uncompromised ride quality across sizes
VPSHP suspension platform
Bosch eBike Flow App – personalize your experience and stay up to date
Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
No Other Way Limited Lifetime Warranty

NEW TECHNOLOGY

The perfect blend of power and low weight

With 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, this setup provides an ideal blend of power and enjoyment while balancing wear and range.

SPECIFICATION

FRAME	Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

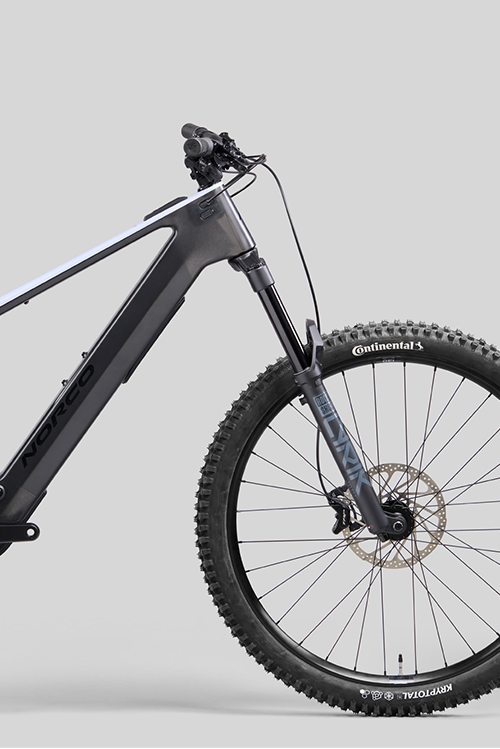

FORK	Rock Shox Lyrik Select 160mm

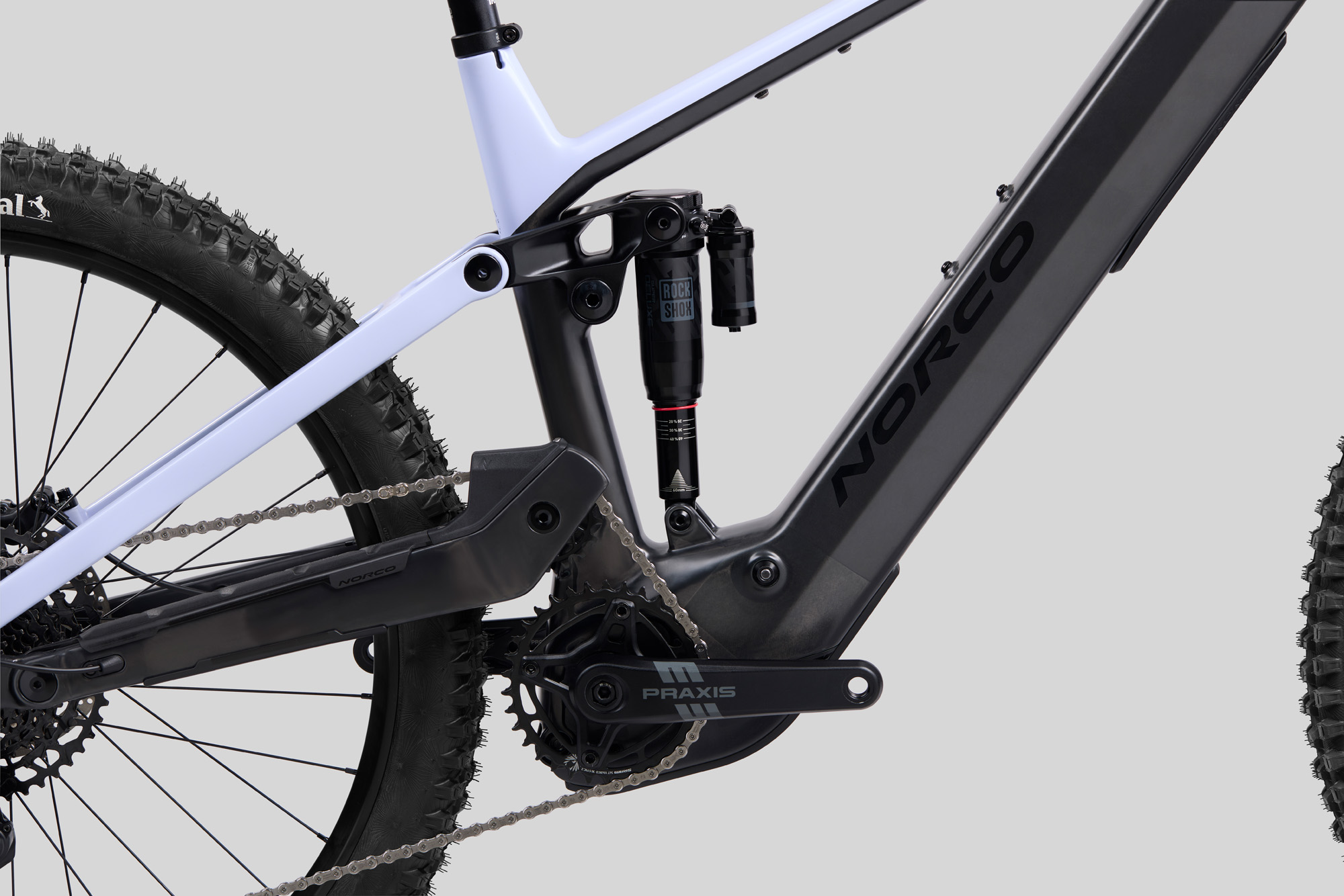

REAR SHOCK	Rock Shox Super Deluxe Select, 205x60mm TR
HEADSET	FSA No.55 Sealed Bearing, 1 1/8" - 1.5" Tapered, ( ZS44/28.6 \| ZS56/40 )
GRIPS	WTB Wavelength, 130mm Length
HANDLE BAR	Norco 6061 DB Alloy, 800mm, 25mm
STEM	Norco Alloy, 40mm Length, 35mm Clamp
SEAT POST	TranzX YSP23, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
SEAT POST CLAMP	Norco Alloy Nutted Clamp 34.9mm ID
SADDLE	Fizik Terra Aidon X5
FRONT BRAKE	TRP Slate EVO, Metallic Pads
FRONT BRAKE ROTOR	TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt
REAR BRAKE	TRP Slate EVO, Metallic Pads
REAR BRAKE ROTOR	TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt
BRAKE LEVERS	TRP Slate EVO
SHIFTER REAR	Shimano Deore SL-M6100-R, 12spd
REAR DERAILLEUR	Shimano Deore RD-M6100, 12spd
CASSETTE	Shimano Deore CS-M6100-12, 10-51T, 12spd
CHAIN	Shimano Deore CN-M6100, 12spd
CRANKSET	Praxis HD Aluminum Bosch Cranks, 34T, 165mm
BOTTOM BRACKET	Bosch BDU38
FRONT HUB	Bear Pawls BMB-013, 15x110 Boost, 32H, 6 Bolt
REAR HUB	Bear Pawls BMB-007, 12x148 Boost, HG, 32H, 6 Bolt
SPOKES/NIPPLES	Sapim Sprint DB Spokes
RIMS	WTB STi30,30 mm, 32H, 29"-27.5 F/R
FRONT TYRE	Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
REAR TYRE	Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable

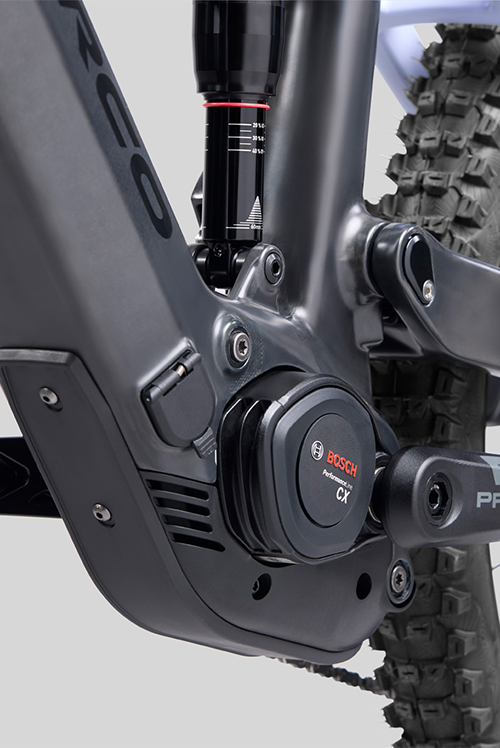

DRIVE UNIT	Drive Unit Performance Line CX BDU38
BATTERY	Bosch PowerTube 800 Wh
SWITCH	Bosch BRC 3300 Mini Remote 22.2mm
POWER BUTTON	Bosch BRC 3100 System Controller

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

		Size 2	Size 3	Size 4	Size 5
	WHEEL SIZE	29" / 27.5"
	TRAVEL (MM FRONT / MM REAR)	160/150mm
	REACH	447.5	472.5	497.5	522.5
	STACK	627	636	645	654
HTA	HEAD TUBE ANGLE	64
OS	FORK OFFSET	44
ST	SEAT TUBE LENGTH	395	415	445	475
STA	EFFECTIVE SEAT TUBE ANGLE	77.25	77.5	77.75	78
RC	REAR CENTRE LENGTH	432	436	440	444
RC	REAR CENTRE LENGTH AT SAG	441	445	449	453
BB	BOTTOM BRACKET DROP	25/5
BBH	BOTTOM BRACKET HEIGHT	349
HTT	HORIZONTAL TOP TUBE	589	613	637	661
WB	WHEELBASE	1222	1255	1289	1322
SOH	STANDOVER	701	711	714	729
HT	HEAD TUBE LENGTH	115	125	135	145
	TRAIL	133
	RECOMMENDED SEATPOST DROP	150	170	200	200
	MAXIMUM POST INSERTION	250	270	300	330
	STEM LENGTH	40
	CRANK LENGTH	165
	TYRE SIZE	2.35" - 2.6"
	WATER BOTTLE COMPATIBLE	1 x 620ml	1 x 750ml
