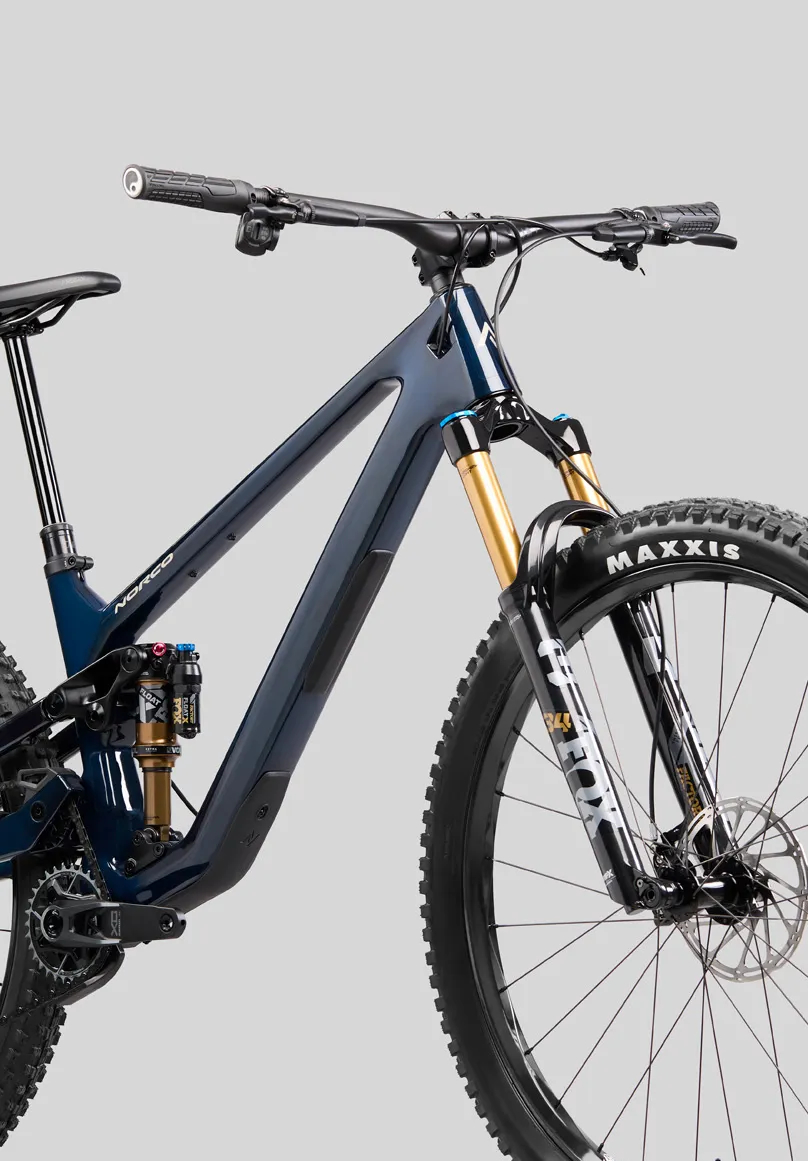

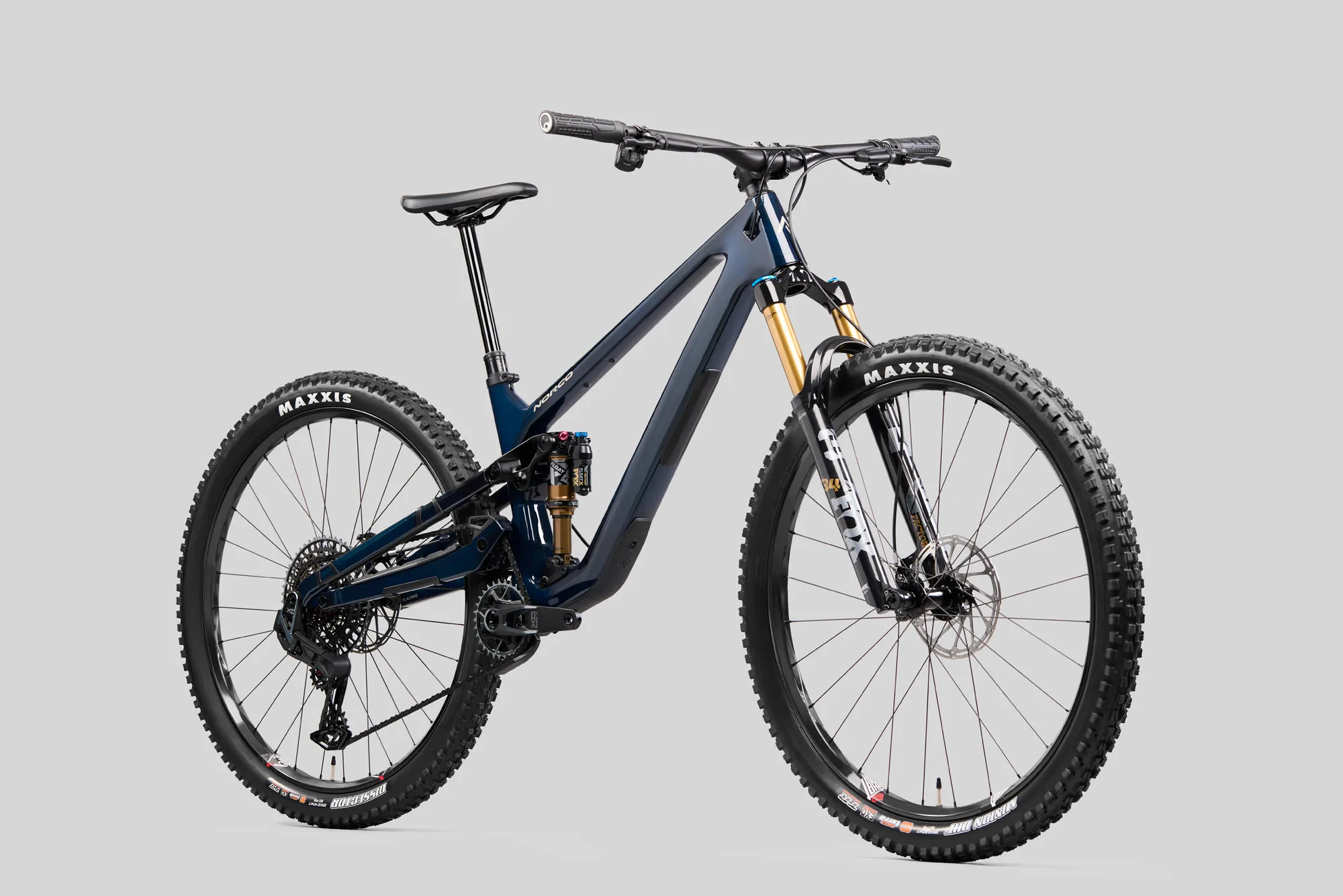

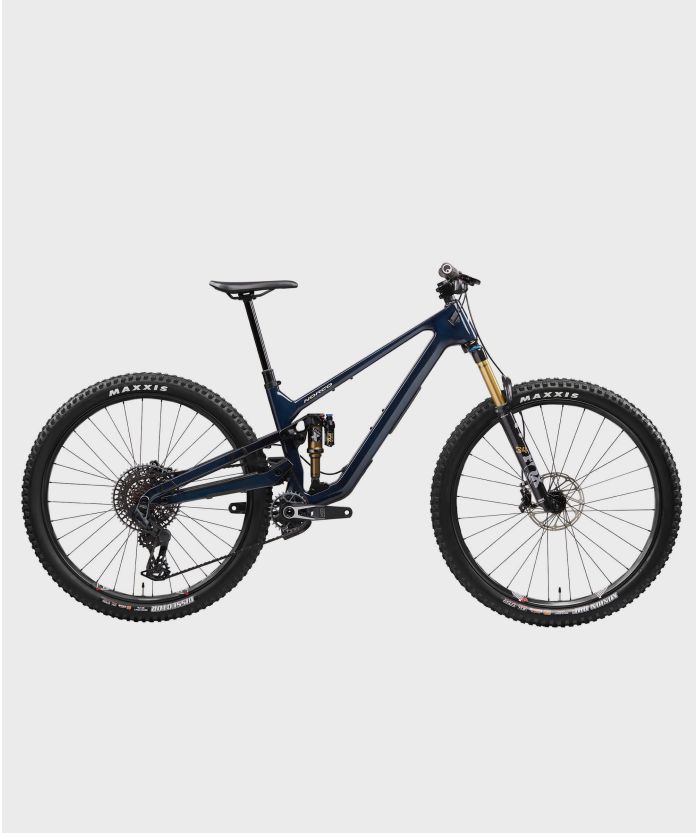

Norco Optic C1 29" Bike

- Discipline: Trail
- Wheelsize: 29"
- Rear Travel: 125mm
- Frame Material: Carbon Fibre
Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of what’s possible on a short travel trail bike.
NEW TECHNOLOGY
With 140mm/125mm of travel, the Optic condenses years of technology from long travel bikes into a lightweight package that’s as comfortable tearing up climbs as it is tackling challenging descents.

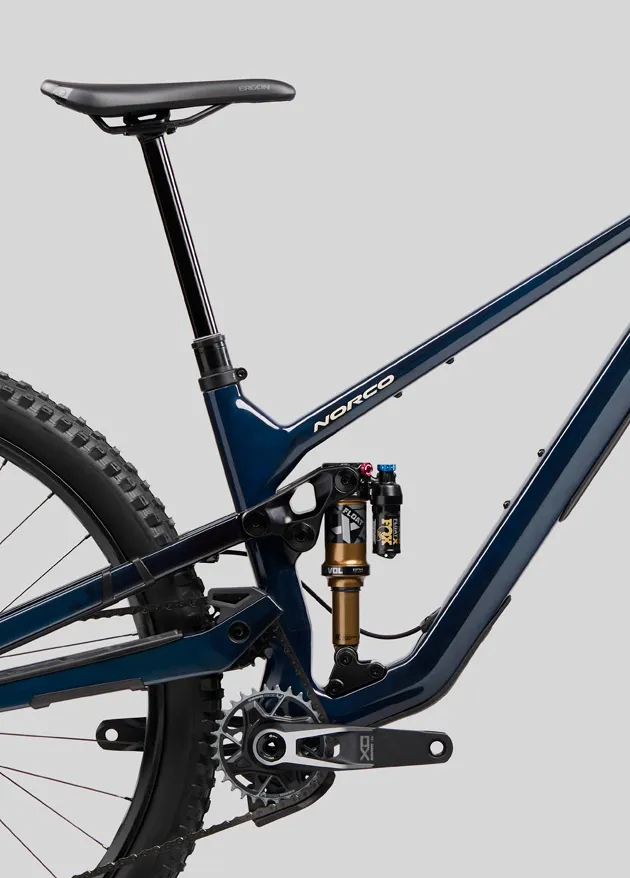

The VPSHP suspension layout provides increased rearward axle path and an idler to manage pedal feedback, keeping Optic’s playful roots, while punching above its weight when the trails get rough.

GEOMETRY
Coming in five frame sizes (1,2,3,4,5) to support rider heights up to 6’5" (196cm), allows you to choose the frame size that best fits your body and riding preferences.
Rear centres and seat tube angles are varied by frame size to ensure consistent rider weight distribution, and short seat tubes with long dropper posts keep the saddle out of the way on technical descents.
FORCE SEPARATION
Optic’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

PRECISION KINEMATICS
Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 50mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.

SIZE & STYLE
Fully-committed, aggressively playful performance featuring size-specific Rear- Centres & Seat Tube Angles across all 5 frame sizes, giving you the best chance to find the perfect fit for your size & style.
YOU DO YOU
Optic Carbon is available with dual 29” wheels and one 29”/27.5” MX wheel model so you can toe the line, or let your hair down. Plus, you can buy the Missing Links later if you get curious about how the other side rides.

CARBON FRAME
Full carbon fibre frame and stays are engineered to optimize strength, stiffness and light weight, ensuring you hit the line you want every time and intuitively navigate the toughest terrain.

RIDE ALIGNED™
Perfect fit, dialed handling and personalised setup in minutes.
The Ride Aligned™ Design System matches each Optic to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.
SPECIFICATION
FRAME | Carbon Frame, 125mm Travel, UDH, Eagle Transmission |
FORK | Fox 34 Factory Float, GripX, HSC/LSC/HSRT/LSR, 140mm, 44mm Offset,Fender Included |
REAR SHOCK | Fox Float X Factory, 185x50mm TR |
HEADSET | FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
GRIPS | Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5) |

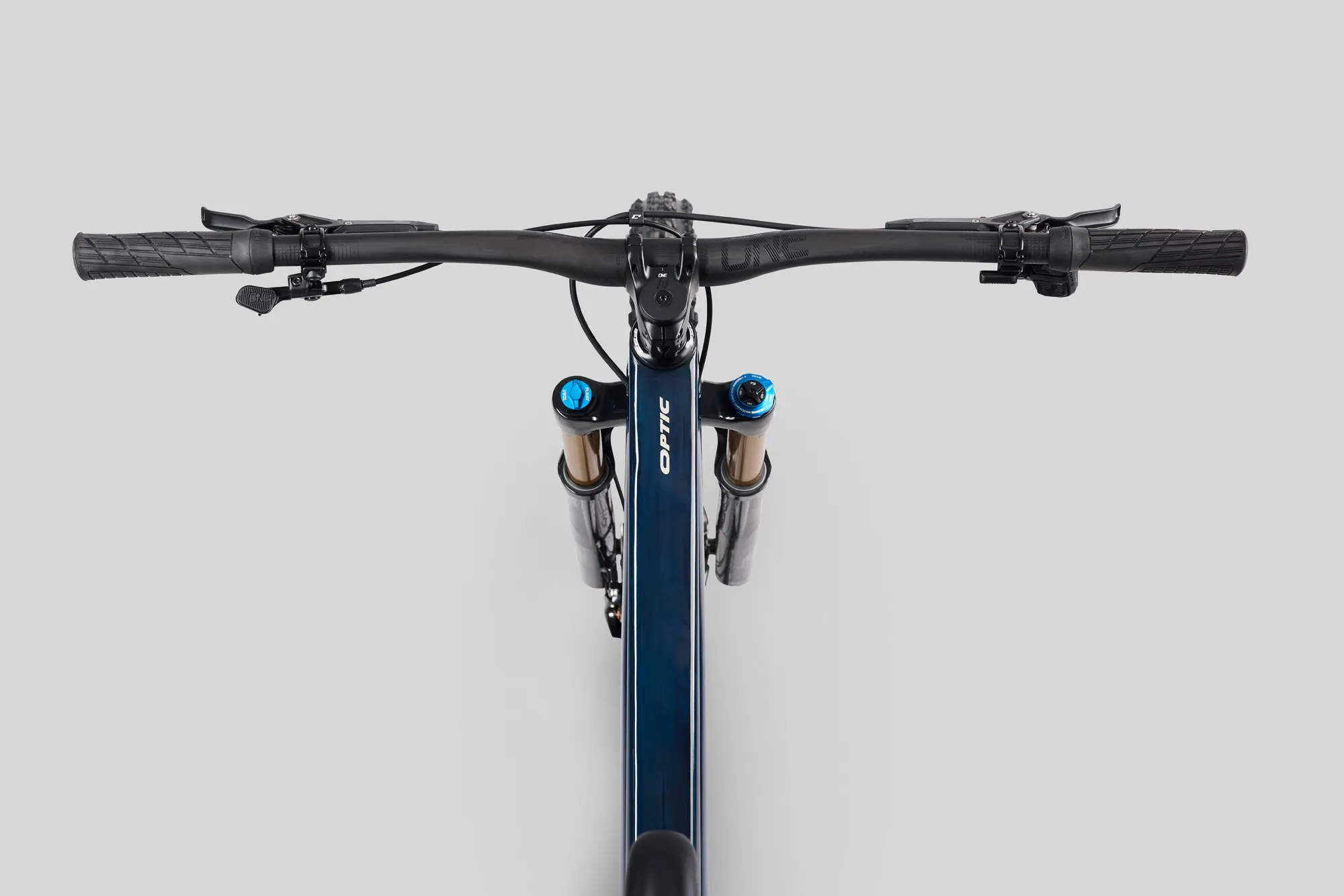

HANDLE BAR | OneUp Carbon 35, 800mm, 20mm rise |
STEM | OneUp 42mm Length, 35mm Clamp |
SEAT POST | OneUp V3 w/ OneUp 1x lever,34.9mm, 150 (S1) -180mm (S2) -210mm (S3,S4) -240mm (S5) |
SADDLE | Ergon SM-1 Enduro |
FRONT BRAKE | SRAM Code R, 4-Piston, Sintered Pads |
FRONT BRAKE ROTOR | SRAM Centerline, 180mm, 1.8mm Thickness, 6 bolts |
REAR BRAKE | SRAM Code Silver Stealth, 4-Piston, Sintered Pads |
REAR BRAKE ROTOR | SRAM Centerline, 180mm, 1.8mm Thickness, 6 bolt |
BRAKE LEVERS | SRAM Code Silver Stealth |
SHIFTER REAR | SRAM Pod Ultimate Controller, MMX Bridge |
REAR DERAILLEUR | SRAM X0 Eagle AXS T-Type, 12sp |
CASSETTE | SRAM 1295 T-Type, 10-52T, 12sp |
CHAIN | SRAM X0 Eagle T-Type, 12spd |
CRANKSET | Sram X0 Eagle, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) |
BOTTOM BRACKET | SRAM DUB, BSA 73mm, MTB WIDE |
FRONT HUb | Industry Nine 1/1, 15x110 Boost, 32H, 6-bolt |
REAR HUB | Industry Nine 1/1, 12x148 Boost, XD, 32H, 6-bolt |
RIMS | We Are One Faction Carbon, 32H, F/R-29", 27mm ID |
FRONT TYRE | Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding |
REAR TYRE | Maxxis Dissector, 3C Max Terra EXO, 29x2.4", Folding |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
1 | 2 | 3 | 4 | 5 | ||
WHEEL SIZE | 29" | |||||
RIDER HEIGHT (FT) | 5'1-5'5" | 5'4-5'8" | 5'7-5'11" | 5'10-6'2" | 6'1-6'5" | |
RIDER HEIGHT (CM) | 155.0-165.0 | 162.5-172.5 | 170.0-180.0 | 178.0-188.0 | 185.5-195.5 | |
TRAVEL (MM FRONT / MM REAR) | 140/125mm | |||||
REACH | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
STACK | 608 | 617 | 626 | 635 | 644 | |
HTA | HEAD TUBE ANGLE | 65.0 | ||||
OS | FORK OFFSET | 44 | ||||
ST | SEAT TUBE LENGTH | 350 | 370 | 385 | 430 | 445 |
STA | EFFECTIVE SEAT TUBE ANGLE | 76.50 | 76.75 | 77.00 | 77.25 | 77.50 |
RC | REAR CENTRE LENGTH | 421 | 425 | 429 | 433 | 437 |
BB | BOTTOM BRACKET DROP | 32/32 | ||||
BBH | BOTTOM BRACKET HEIGHT | 346 | ||||
HTT | HORIZONTAL TOP TUBE | 568 | 593 | 617 | 641 | 665 |
WB | WHEELBASE | 1159 | 1193 | 1226 | 1259 | 1292 |
SOH | STANDOVER | 675 | 677 | 678 | 707 | 705 |
HT | HEAD TUBE LENGTH | 100 | 110 | 120 | 130 | 140 |
TRAIL | 128 | |||||
RECOMMENDED SEATPOST DROP | 150 | 170 | 200 | 200 | 230 | |
MAXIMUM POST INSERTION | 250 | 270 | 300 | 300 | 330 | |
STEM LENGTH | 40 | |||||
CRANK LENGTH | 170 | |||||
TYRE SIZE | 2.35" - 2.6" | |||||
WATER BOTTLE COMPATIBLE | 1 x 620ml | 1 x 750ml | 1 x 750ml | 1 x 750ml | 1 x 750ml |
