Norco Optic C2 29" Bike

Name: Norco Optic C2 29" Bike
Brand: Norco
Price: 5999 GBP
Availability: InStock

Be the first to review this product

SKU

VAR-NO-0680215924

From £5,999.00 £4,999.17

Trade Only Item

Discipline: Trail
Wheelsize: 29"
Rear Travel: 125mm
Frame Material: Carbon Fibre

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Details

Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of what’s possible on a short travel trail bike.

NEW TECHNOLOGY

With 140mm/125mm of travel, the Optic condenses years of technology from long travel bikes into a lightweight package that’s as comfortable tearing up climbs as it is tackling challenging descents.

The VPSHP suspension layout provides increased rearward axle path and an idler to manage pedal feedback, keeping Optic’s playful roots, while punching above its weight when the trails get rough.

Geometry

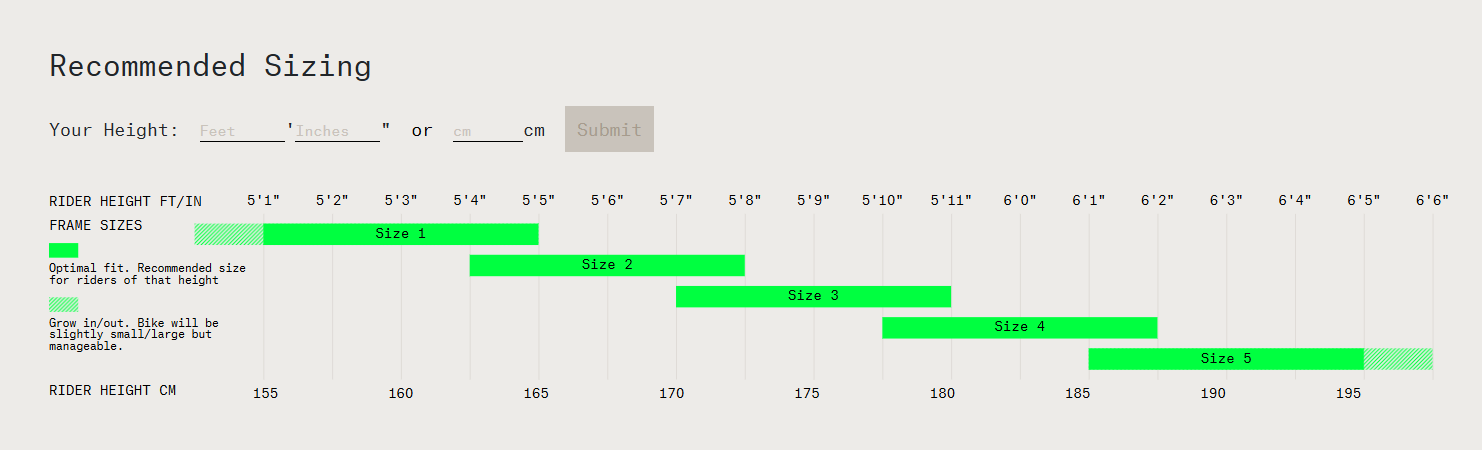

Coming in five frame sizes (1,2,3,4,5) to support rider heights up to 6’5" (196cm), allows you to choose the frame size that best fits your body and riding preferences.

Rear centres and seat tube angles are varied by frame size to ensure consistent rider weight distribution, and short seat tubes with long dropper posts keep the saddle out of the way on technical descents.

FORCE SEPARATION

Optic’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

PRECISION KINEMATICS

Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 50mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.

SPECIFICATION

FRAME	Carbon Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
FORK	Rockshox Pike Select + Charger 3.1, 140mm, 44mm offset, Fender Included
REAR SHOCK	Rockshox Super Deluxe Select +, 185x50mm TR
HEADSET	Zero Stack Sealed Cartridge Bearings - Tapered
GRIPS	Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5)
HANDLE BAR	OneUp Aluminum, 800mm, 20mm rise
STEM	OneUp 42mm length , 35mm clamp
SEAT POST	TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)
SEAT POST CLAMP	Norco Alloy Nutted Clamp
SADDLE	Ergon SM-1 Enduro
FRONT BRAKE	SRAM Code Silver Stealth, 4-Piston, Sintered Pads
FRONT BRAKE ROTOR	SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt
REAR BRAKE	SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt
REAR BRAKE ROTOR	SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt
BRAKE LEVERS	SRAM Code Silver Stealth
SHIFTER REAR	SRAM Pod Controller, MMX Bridge
REAR DERAILLEUR	SRAM GX Eagle AXS T-Type, 12sp
CASSETTE	SRAM 1275 Eagle T-Type, 10-52T, 12sp
CHAIN	SRAM GX Eagle T-Type, 12spd
CRANKSET	SRAM Eagle, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
BOTTOM BRACKET	SRAM DUB, BSA 73mm, MTB WIDE
FRONT HUB	DT Swiss 370, 15x110 Boost, 32H, 6-bolt
REAR HUB	DT Swiss 370, 12x148 Boost, XD, 6-bolt
SPOKES/NIPPLES	Stainless steel
RIMS	Stan's Flow S2, 32H, F/R- 29", 30mm ID
FRONT TYRE	Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
REAR TYRE	Maxxis Disector, 3C Max Terra EXO, 29x2.4", Folding

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

		1	2	3	4	5
	WHEEL SIZE	29"
	RIDER HEIGHT (FT)	5'1-5'5"	5'4-5'8"	5'7-5'11"	5'10-6'2"	6'1-6'5"
	RIDER HEIGHT (CM)	155.0-165.0	162.5-172.5	170.0-180.0	178.0-188.0	185.5-195.5
	TRAVEL (MM FRONT / MM REAR)	140/125mm
	REACH	422.5	447.5	472.5	497.5	522.5
	STACK	608	617	626	635	644
HTA	HEAD TUBE ANGLE	65.0
OS	FORK OFFSET	44
ST	SEAT TUBE LENGTH	350	370	385	430	445
STA	EFFECTIVE SEAT TUBE ANGLE	76.50	76.75	77.00	77.25	77.50
RC	REAR CENTRE LENGTH	421	425	429	433	437
BB	BOTTOM BRACKET DROP	32/32
BBH	BOTTOM BRACKET HEIGHT	346
HTT	HORIZONTAL TOP TUBE	568	593	617	641	665
WB	WHEELBASE	1159	1193	1226	1259	1292
SOH	STANDOVER	675	677	678	707	705
HT	HEAD TUBE LENGTH	100	110	120	130	140
	TRAIL	128
	RECOMMENDED SEATPOST DROP	150	170	200	200	230
	MAXIMUM POST INSERTION	250	270	300	300	330
	STEM LENGTH	40
	CRANK LENGTH	170
	TYRE SIZE	2.35" - 2.6"
	WATER BOTTLE COMPATIBLE	1 x 620ml	1 x 750ml	1 x 750ml	1 x 750ml	1 x 750ml
