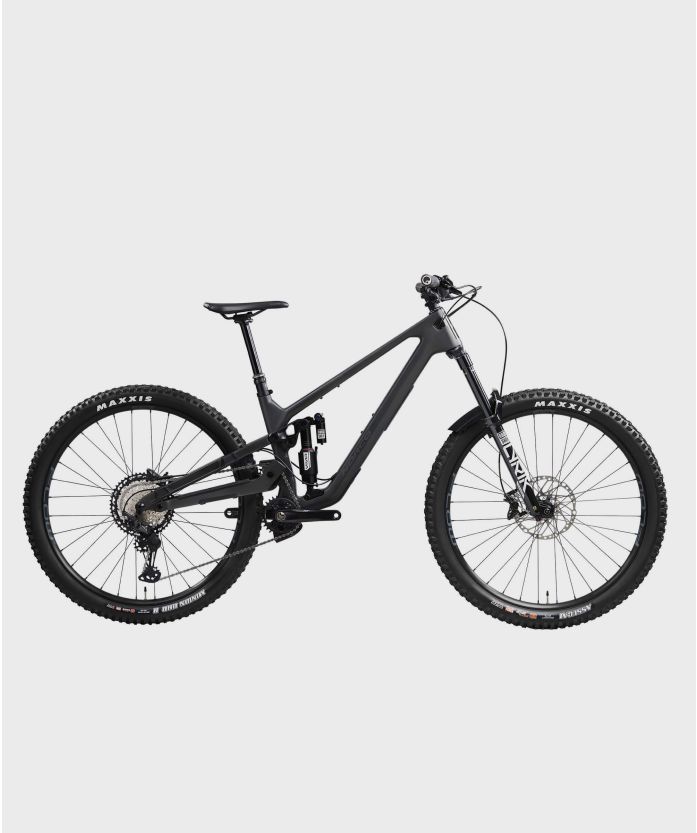

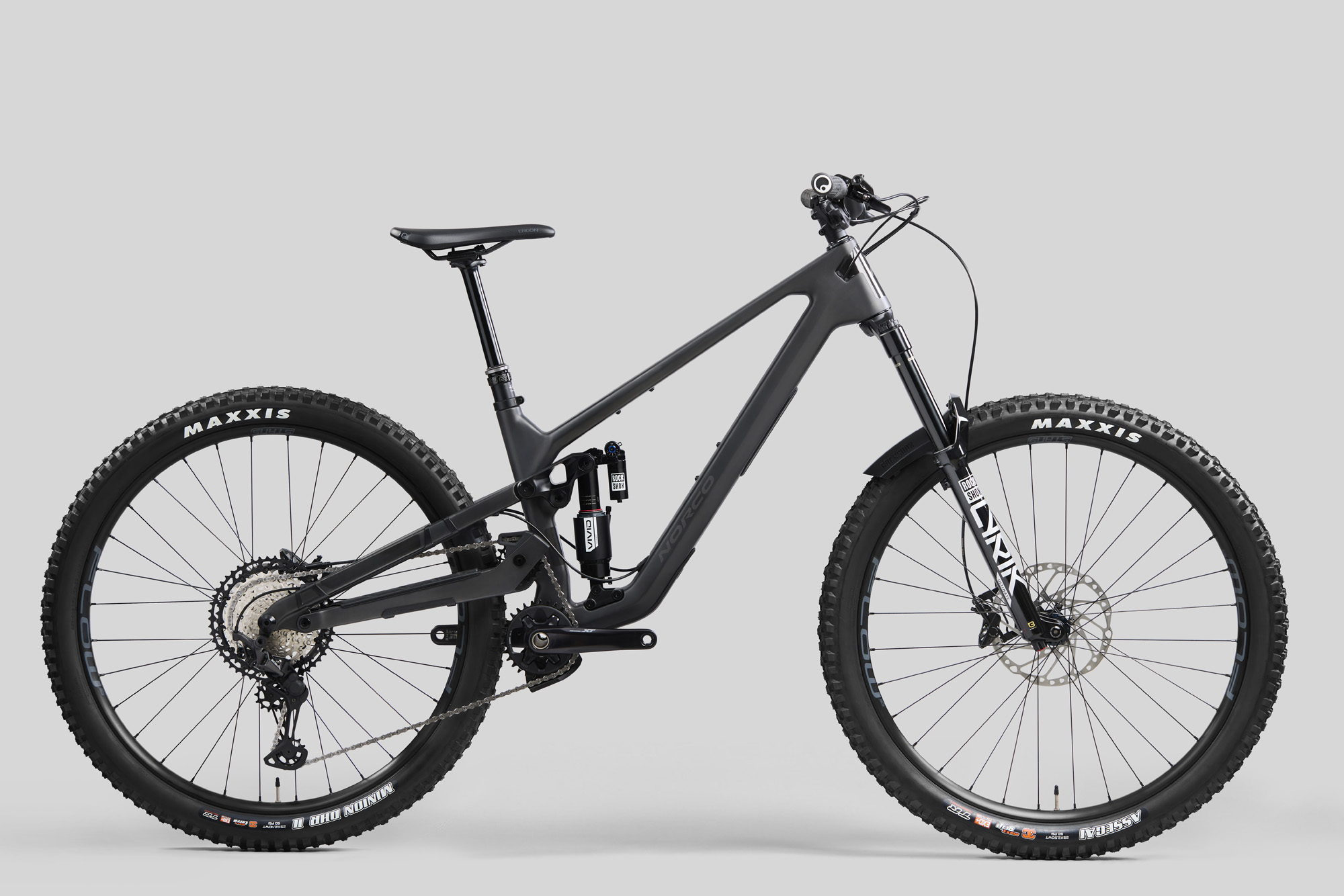

Norco Sight 150 C2 29/27.5" Bike

Norco
SKU
VAR-NO-0620215124
From £5,599.00 £4,665.83
Trade Only Item
  • Discipline: All-Mountain
  • Wheelsize: 29/27.5"
  • Rear Travel: 150mm
  • Frame Material: Carbon Fibre

Fluid VLT Wordmark



The Sight is up for whatever ride you can conjure and will deliver the goods reliably and without fanfare. But don’t mistake that for not being up for a little mayhem. Norco’s legendary 150mm/160mm All-Mountain machine is the wingman you’ve always wished for – engineered with the self-confidence it takes to shine the spotlight directly on you, giving you the time of your life on every ride.

TERRAIN-TAILORED SUSPENSION

Sight’s High Pivot Horst Link suspension platform features 150mm of net vertical travel in a rearward axle path to absorb high-speed, square-edge impacts to maintain momentum and control.

BALANCED PEDALING

Sight’s chainstay-mounted, dynamic idler positioning creates an All-Mountain-tuned anti-squat curve with minimal kickback under heavy impacts, and provides superior traction on technical climbs with efficient pedaling.

FORCE SEPARATION

Sight’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

PRECISION KINEMATICS

Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 60mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.

SIZE & STYLE

Sight’s All-Mountain manners define Norco Ride Performance. With size-specific Rear- Centres & Seat Tube Angles unique to all 5 frame sizes, you’re sure to find the perfect fit for your size & style.

YOU DO YOU

Sight is available with dual 29” wheels and 29”/27.5” MX wheel models so you can toe the line, or let your hair down. Plus, you can buy the Missing Links later if you get curious about how the other side rides.

CARBON FRAME

Full carbon fibre frame and stays are engineered to optimize strength, stiffness and light weight, ensuring you hit the line you want every time and intuitively navigate the toughest terrain.

RIDE ALIGNED™

Perfect fit, dialed handling and personalised setup in minutes.

The Ride Aligned™ Design System matches each Sight to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.

SPECIFICATION

FRAME Carbon Frame, 150mm Travel, UDH, High Pivot Horst Suspension, Eagle Transmission Compatible, Ride Aligned™
FORK RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm Offset, Fender Included
REAR SHOCK RockShox Vivid 2 Ultimate Air, 205x60mm TR
HEADSET FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )
GRIPS Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5)
HANDLE BAR 6061 Alloy, 800mm, 25mm Rise
STEM Norco 6061 Alloy, 40mm Length, 35mm Clamp
SEAT POST TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)
SADDLE Ergon SM-10 Enduro
FRONT BRAKE Shimano Deore MT520 4-P, Metallic pads
FRONT BRAKE ROTOR Shimano RT-64, 200mm rotor, C-Lock
REAR BRAKE Shimano Deore MT520 4-P, Metallic pads
REAR BRAKE ROTOR Shimano RT-64, 180mm rotor, C-Lock
BRAKE LEVERS Shimano Deore MT520 4-P
SHIFTER REAR Shimano XT M8100, I-Spec, 12sp
REAR DERAILLEUR Shimano XT M8100, 12s
CASSETTE Shimano Deore XT M8200, 10-51T, 12sp
CHAIN Shimano XT M8100, 12sp
CRANKSET Shimano Deore XT M8120, 32T, 55CL, 165mm (S1,S2) -170mm (S3,S4,S5)
BOTTOM BRACKET Shimano Sealed Bearing, BSA 73mm
CHAIN GUIDE Norco idler guide cover and lower guard
FRONT HUB SKEWER Shimano SLX,15x110mm Boost, 32H, C-lock
REAR HUB Shimano FH-M7110 SLX, 12x148mm Boost, Micro Spline, 32H, C-lock
SPOKES/NIPPLES DT Competition butted, 1.8/1.6/1.8, stainless steel
RIMS Stan’s Flow S2, 32H, F- 29", R-27,5", 30mm ID
FRONT TYRE Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
REAR TYRE Maxxis Minion DHR II, 3C Maxx Terra EXO+, 27.5x2.4", Folding

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.


1 2 3 4 5
WHEEL SIZE 29"/27.5"
RIDER HEIGHT (FT) 5'1-5'5" 5'4-5'8" 5'7-5'11" 5'10-6'2" 6'1-6'5"
RIDER HEIGHT (CM) 155.0-165.0 162.5-172.5 170.0-180.0 178.0-188.0 185.5-195.5
TRAVEL (MM FRONT / MM REAR) 160/150mm
REACH 422.5 447.5 472.5 497.5 522.5
STACK 618 627 636 645 654
HTA HEAD TUBE ANGLE 64.0
OS FORK OFFSET 44
ST SEAT TUBE LENGTH 350 370 385 430 445
STA EFFECTIVE SEAT TUBE ANGLE 77.00 77.25 77.50 77.75 78.00
RC REAR CENTRE LENGTH 420 424 428 432 436
BB BOTTOM BRACKET DROP 25/4
BBH BOTTOM BRACKET HEIGHT 353
HTT HORIZONTAL TOP TUBE 565 589 613 637 661
WB WHEELBASE 1181 1214 1247 1281 1314
SOH STANDOVER 666 680 689 710 720
HT HEAD TUBE LENGTH 105 115 125 135 145
TRAIL 135
RECOMMENDED SEATPOST DROP 150 170 200 200 200
MAXIMUM POST INSERTION 250 270 300 300 330
STEM LENGTH 40
CRANK LENGTH 170
TYRE SIZE 2.35" - 2.6"
WATER BOTTLE COMPATIBLE 1 x 750ml
