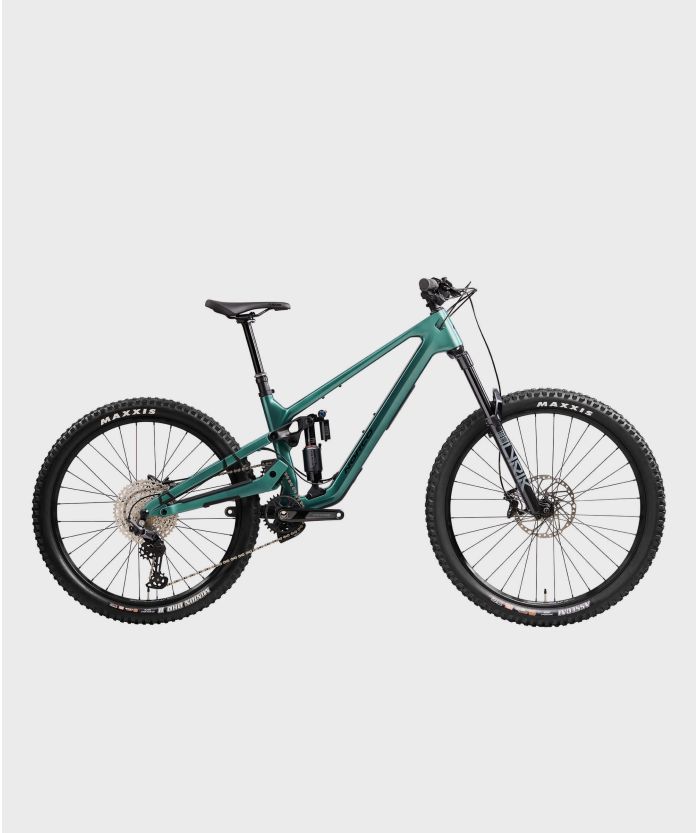

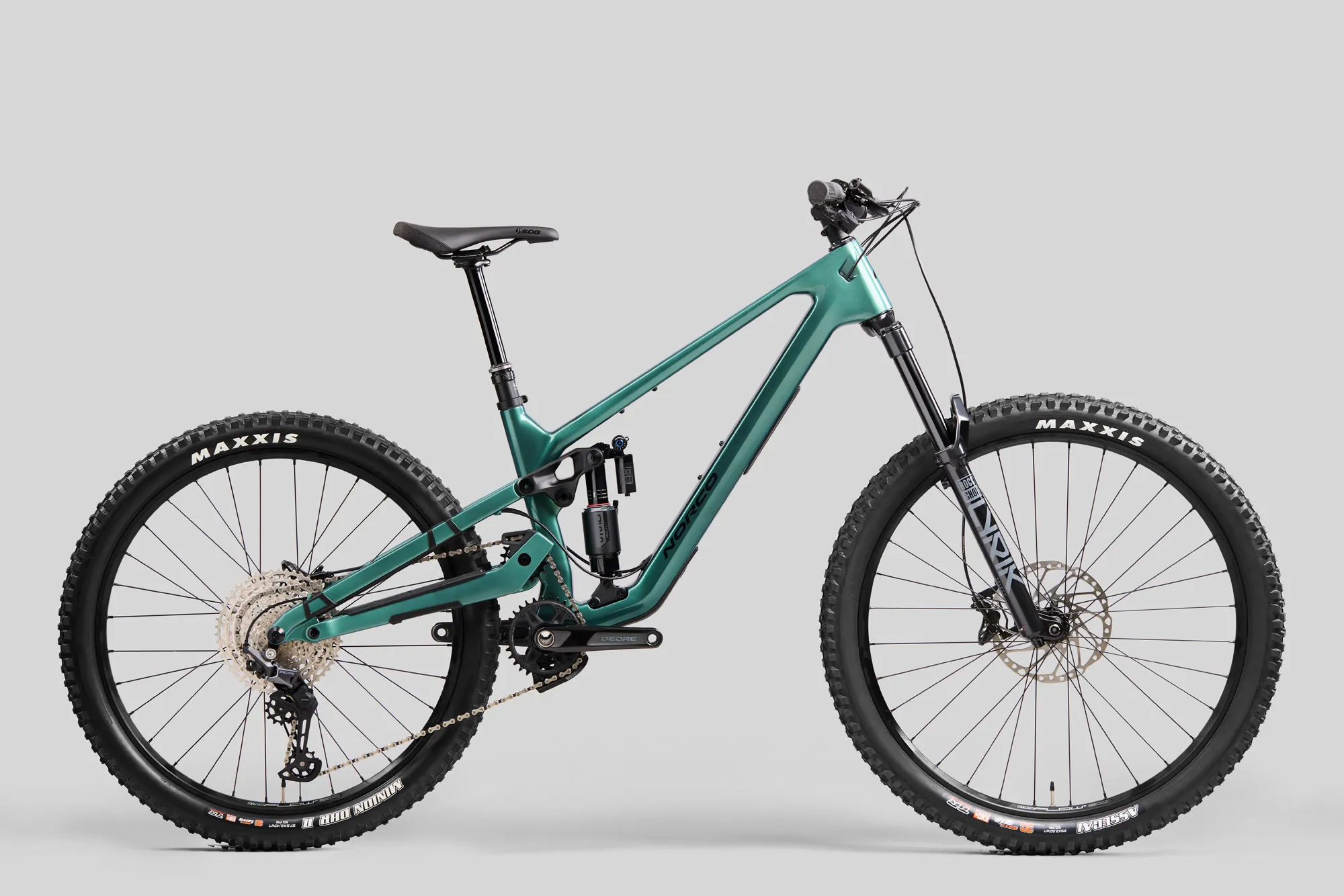

Norco Sight 150 C3 29"/27.5" Bike
SKU
VAR-NO-0620315124
From
£4,799.00
£3,999.17
Trade Only Item
- TRADE ONLY ITEM
- Discipline: All-Mountain
- Wheelsize: 29"/27.5"
- Rear Travel: 150mm
- Frame Material: Carbon Fibre
Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain.
TERRAIN-TAILORED SUSPENSION
Sight’s High Pivot Horst Link suspension platform features 150mm of net vertical travel in a rearward axle path to absorb high-speed, square-edge impacts to maintain momentum and control.
BALANCED PEDALING
Sight’s chainstay-mounted, dynamic idler positioning creates an All-Mountain-tuned anti-squat curve with minimal kickback under heavy impacts, and provides superior traction on technical climbs with efficient pedaling.
FORCE SEPARATION
Sight’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.
PRECISION KINEMATICS
Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 60mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.
SIZE & STYLE
Sight’s All-Mountain manners define Norco Ride Performance. With size-specific Rear- Centres & Seat Tube Angles unique to all 5 frame sizes, you’re sure to find the perfect fit for your size & style.
YOU DO YOU
Sight is available with dual 29” wheels and 29”/27.5” MX wheel models so you can toe the line, or let your hair down. Plus, you can buy the Missing Links later if you get curious about how the other side rides.
CARBON FRAME
Full carbon fibre frame and stays are engineered to optimize strength, stiffness and light weight, ensuring you hit the line you want every time and intuitively navigate the toughest terrain.
RIDE ALIGNED™
Perfect fit, dialed handling and personalised setup in minutes.
The Ride Aligned™ Design System matches each Sight to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.
SPECIFICATION
| FRAME | Carbon Frame, 150mm Travel, UDH, High Pivot Horst Suspension, Eagle Transmission Compatible, Ride Aligned™ |
| FORK | RockShox Lyrik Select, Charger RC, DebonAir+, 160mm, 44mm Offset |
| REAR SHOCK | RockShox Vivid 2 Select+ Air, 205x60mm TR |
| HEADSET | FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
| GRIPS | SDG Thrice, 135mm Length |
| HANDLE BAR | Norco 6061 Alloy, 800mm, 25mm Rise |
| STEM | Norco 6061 Alloy, 40mm Length, 35mm Clamp |
| SEAT POST | TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5) |
| SADDLE | WTB Volt 250 Sport |
| FRONT BRAKE | Shimano Deore MT520 4-P, Metallic pads |
| FRONT BRAKE ROTOR | Shimano RT-64, 200mm rotor, C-Lock |
| REAR BRAKE | Shimano Deore MT520 4-P, Metallic pads |
| REAR BRAKE ROTOR | Shimano RT-64, 180mm rotor, C-Lock |
| BRAKE LEVERS | Shimano Deore MT520 4-P |
| SHIFTER REAR | Shimano Deore SL-M6100, 12sp |
| REAR DERAILLEUR | Shimano Deore RD-M6100, 12sp |
| CASSETTE | Shimano Deore CS-M6100-12, 10-51T, 12sp |
| CHAIN | Shimano Deore CN-M6100, 12sp |
| CRANKSET | Shimano Deore FC-MT6120-1, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) |
| BOTTOM BRACKET | Shimano Sealed Bearing, BSA 73mm |
| FRONT HUB SKEWER | Bear Pawls BMB-513, 15x110mm Boost, 32h, C-lock |
| REAR HUB | Shimano FH-MT510, 12x148mm Boost, Micro Spline, 32H, C-lock |
| SPOKES/NIPPLES | Stainless Steel |
| RIMS | Stan’s Flow D, 32H, F- 29", R-27,5", 29mm ID |
| FRONT TYRE | Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding |
| REAR TYRE | Maxxis Minion DHR II, 3C Maxx Terra EXO+, 27.5x2.4", Folding |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 1 | 2 | 3 | 4 | 5 | ||
| WHEEL SIZE | 29"/27.5" | |||||
| RIDER HEIGHT (FT) | 5'1-5'5" | 5'4-5'8" | 5'7-5'11" | 5'10-6'2" | 6'1-6'5" | |
| RIDER HEIGHT (CM) | 155.0-165.0 | 162.5-172.5 | 170.0-180.0 | 178.0-188.0 | 185.5-195.5 | |
| TRAVEL (MM FRONT / MM REAR) | 160/150mm | |||||
| REACH | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
| STACK | 618 | 627 | 636 | 645 | 654 | |
| HTA | HEAD TUBE ANGLE | 64.0 | ||||
| OS | FORK OFFSET | 44 | ||||
| ST | SEAT TUBE LENGTH | 350 | 370 | 385 | 430 | 445 |
| STA | EFFECTIVE SEAT TUBE ANGLE | 77.00 | 77.25 | 77.50 | 77.75 | 78.00 |
| RC | REAR CENTRE LENGTH | 420 | 424 | 428 | 432 | 436 |
| BB | BOTTOM BRACKET DROP | 25/4 | ||||
| BBH | BOTTOM BRACKET HEIGHT | 353 | ||||
| HTT | HORIZONTAL TOP TUBE | 565 | 589 | 613 | 637 | 661 |
| WB | WHEELBASE | 1181 | 1214 | 1247 | 1281 | 1314 |
| SOH | STANDOVER | 666 | 680 | 689 | 710 | 720 |
| HT | HEAD TUBE LENGTH | 105 | 115 | 125 | 135 | 145 |
| TRAIL | 135 | |||||
| RECOMMENDED SEATPOST DROP | 150 | 170 | 200 | 200 | 200 | |
| MAXIMUM POST INSERTION | 250 | 270 | 300 | 300 | 330 | |
| STEM LENGTH | 40 | |||||
| CRANK LENGTH | 170 | |||||
| TYRE SIZE | 2.35" - 2.6" | |||||
| WATER BOTTLE COMPATIBLE | 1 x 750ml | |||||
| Brand | Norco |
|---|
