Norco Sight C 29 & 29/27.5" Frame

Name: Norco Sight C 29 & 29/27.5" Frame
Brand: Norco
Price: 3499 GBP
Availability: InStock

Be the first to review this product

SKU

VAR-NO-0620415154

From £3,499.00 £2,915.83

Trade Only Item

TRADE ONLY ITEM
Discipline: All-Mountain
Wheelsize: Links included for 29" or 27.5/29" options
Rear Travel: 150mm
Frame Material: Carbon Fibre

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Details

The Sight is up for whatever ride you can conjure and will deliver the goods reliably and without fanfare. But don’t mistake that for not being up for a little mayhem. Norco’s legendary 150mm/160mm All-Mountain machine is the wingman you’ve always wished for – engineered with the self-confidence it takes to shine the spotlight directly on you, giving you the time of your life on every ride.

TERRAIN-TAILORED SUSPENSION

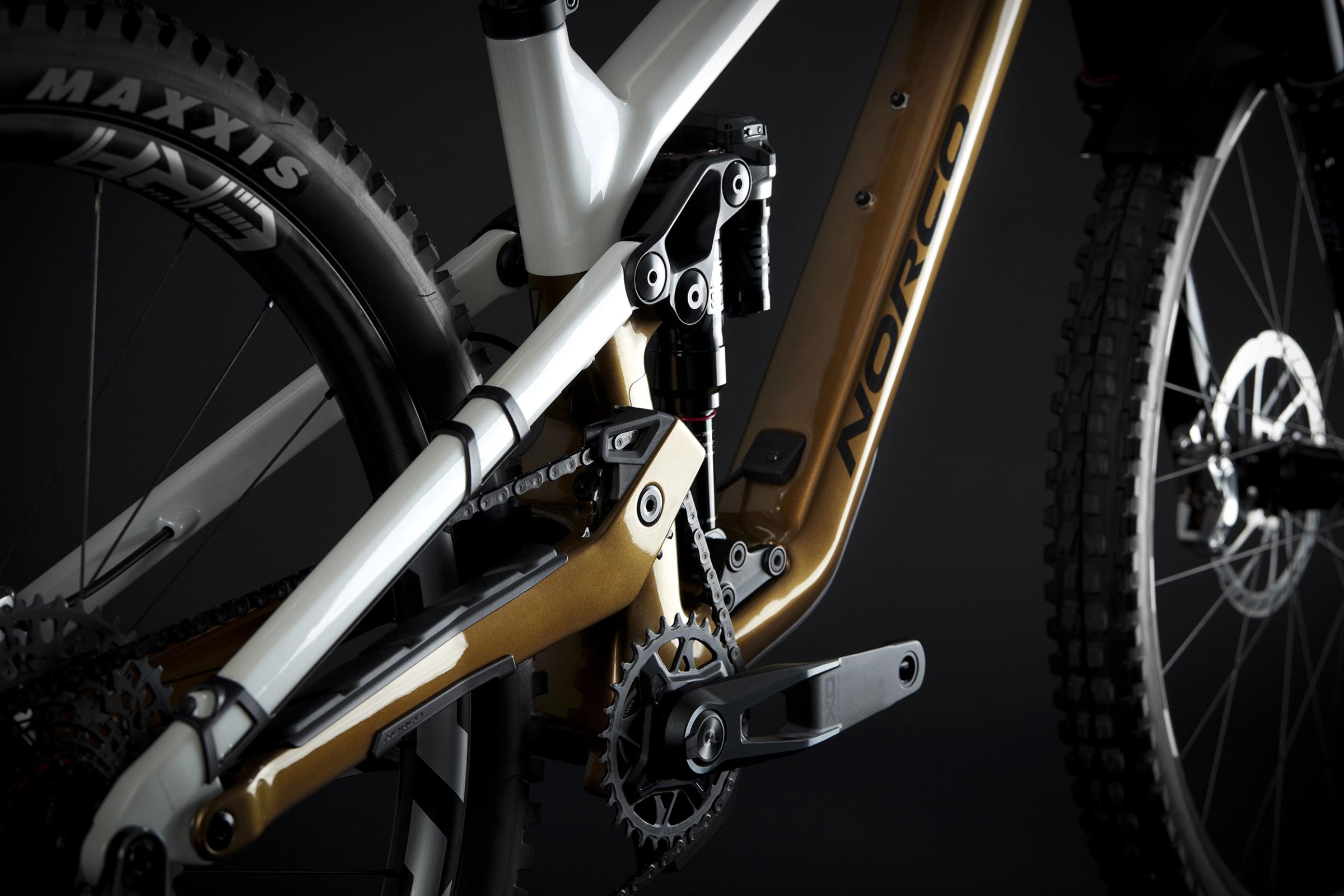

Sight’s High Pivot Horst Link suspension platform features 150mm of net vertical travel in a rearward axle path to absorb high-speed, square-edge impacts to maintain momentum and control.

BALANCED PEDALING

Sight’s chainstay-mounted, dynamic idler positioning creates an All-Mountain-tuned anti-squat curve with minimal kickback under heavy impacts, and provides superior traction on technical climbs with efficient pedaling.

FORCE SEPARATION

Sight’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

PRECISION KINEMATICS

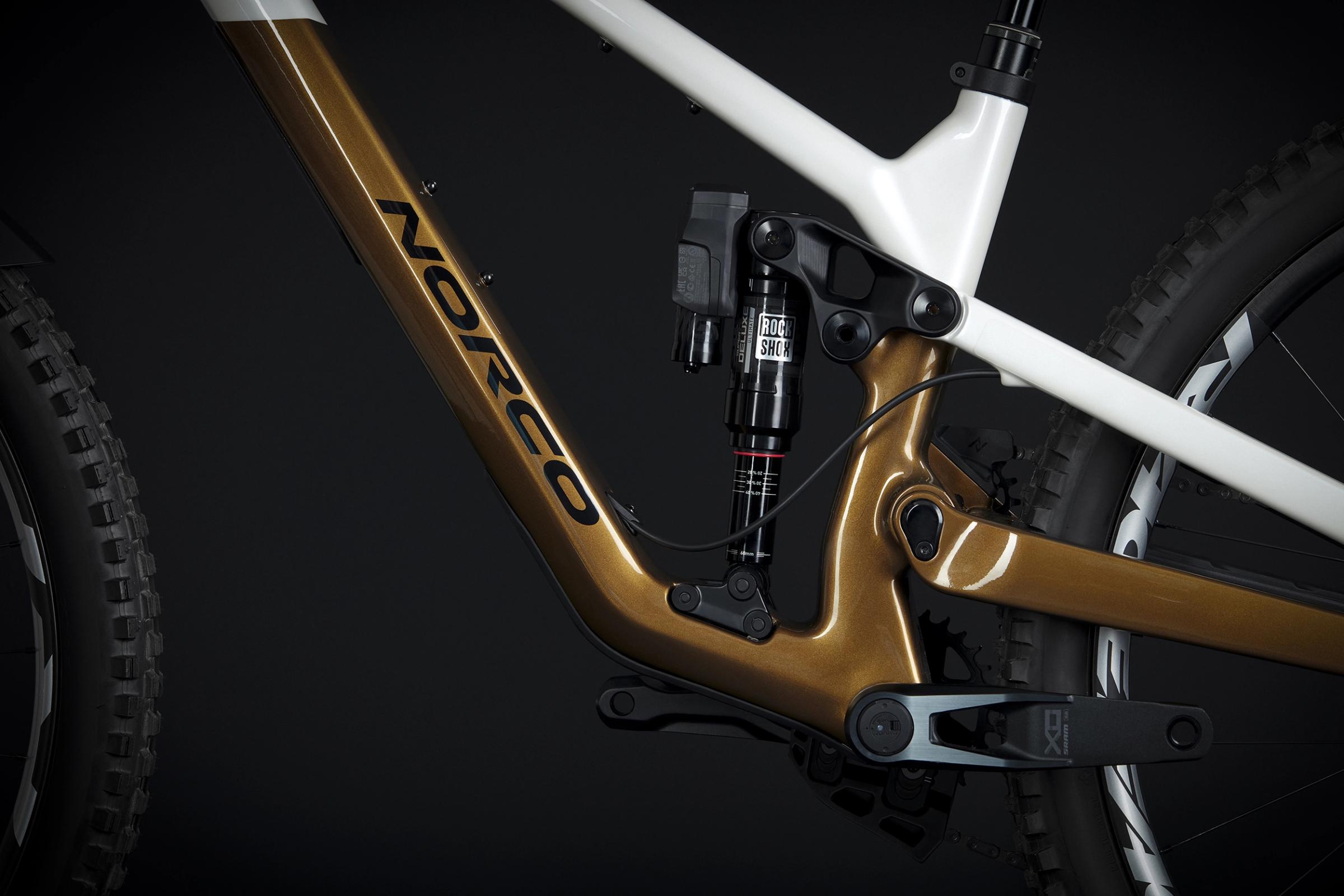

Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 60mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.

SIZE & STYLE

Sight’s All-Mountain manners define Norco Ride Performance. With size-specific Rear- Centres & Seat Tube Angles unique to all 5 frame sizes, you’re sure to find the perfect fit for your size & style.

YOU DO YOU

Sight is available with dual 29” wheels and 29”/27.5” MX wheel models so you can toe the line, or let your hair down. Plus, you can buy the Missing Links later if you get curious about how the other side rides.

CARBON FRAME

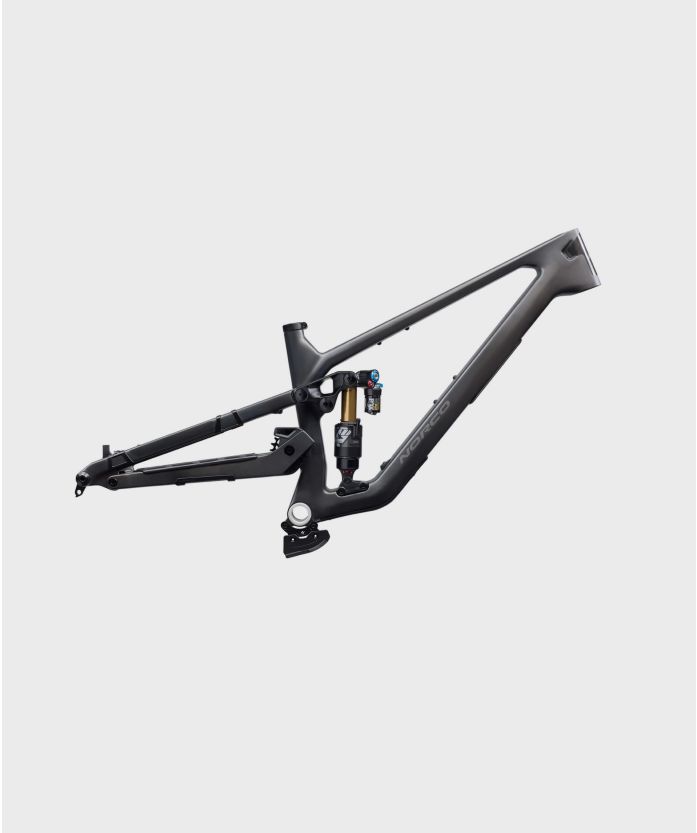

Full carbon fibre frame and stays are engineered to optimise strength, stiffness and light weight, ensuring you hit the line you want every time and intuitively navigate the toughest terrain.

RIDE ALIGNED™

Perfect fit, dialed handling and personalised setup in minutes.

The Ride Aligned™ Design System matches each Sight to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.

SPECIFICATION

FRAME	Sight Full Carbon, High Pivot Horst Suspension, 150mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
REAR SHOCK	Fox Factory Float X2

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

		1	2	3	4	5
	WHEEL SIZE	29"
	RIDER HEIGHT (FT)	5'1-5'5"	5'4-5'8"	5'7-5'11"	5'10-6'2"	6'1-6'5"
	RIDER HEIGHT (CM)	155.0-165.0	162.5-172.5	170.0-180.0	178.0-188.0	185.5-195.5
	TRAVEL (MM FRONT / MM REAR)	160/150mm
	REACH	422.5	447.5	472.5	497.5	522.5
	STACK	618	627	636	645	654
HTA	HEAD TUBE ANGLE	64.0
OS	FORK OFFSET	44
ST	SEAT TUBE LENGTH	350	370	385	430	445
STA	EFFECTIVE SEAT TUBE ANGLE	77.00	77.25	77.50	77.75	78.00
RC	REAR CENTRE LENGTH	426	430	434	438	442
BB	BOTTOM BRACKET DROP	25/25
BBH	BOTTOM BRACKET HEIGHT	353
HTT	HORIZONTAL TOP TUBE	565	589	613	637	661
WB	WHEELBASE	1186	1219	1253	1286	1319
SOH	STANDOVER	673	679	685	708	720
HT	HEAD TUBE LENGTH	105	115	125	135	145
	TRAIL	135
	RECOMMENDED SEATPOST DROP	150	170	200	200	200
	MAXIMUM POST INSERTION	250	270	300	300	330
	STEM LENGTH	40
	CRANK LENGTH	170
	TYRE SIZE	2.35" - 2.6"
	WATER BOTTLE COMPATIBLE	1 x 750ml
