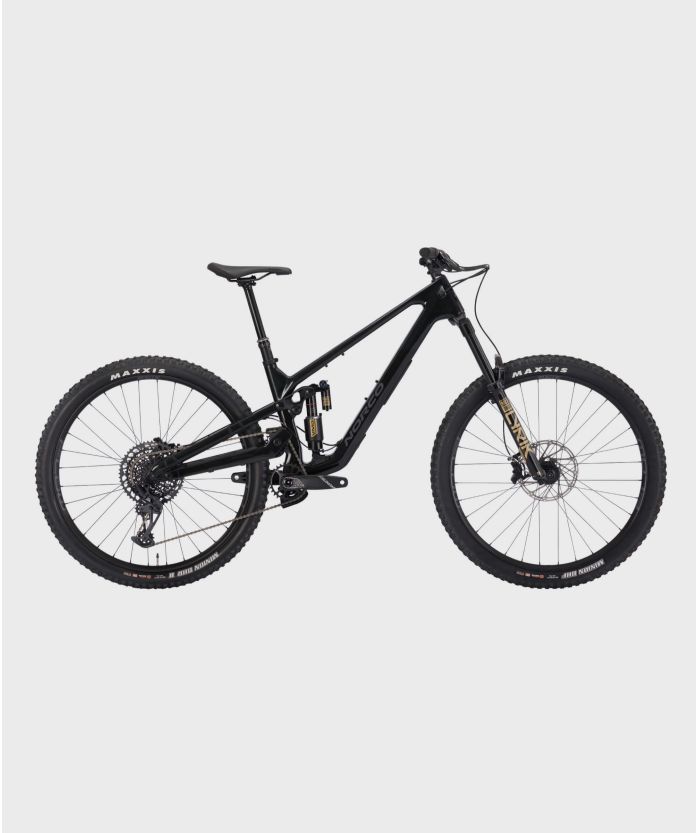

Norco Sight C2 29" Bike

- Discipline: All-Mountain
- Wheelsize: 29"
- Rear Travel: 150mm
- Frame Material: Carbon Fibre
The Sight is up for whatever ride you can conjure and will deliver the goods reliably and without fanfare. But don’t mistake that for not being up for a little mayhem. Norco’s legendary 150mm/160mm All-Mountain machine is the wingman you’ve always wished for – engineered with the self-confidence it takes to shine the spotlight directly on you, giving you the time of your life on every ride.
TERRAIN-TAILORED SUSPENSION
Sight’s High Pivot Horst Link suspension platform features 150mm of net vertical travel in a rearward axle path to absorb high-speed, square-edge impacts to maintain momentum and control.

BALANCED PEDALING
Sight’s chainstay-mounted, dynamic idler positioning creates an All-Mountain-tuned anti-squat curve with minimal kickback under heavy impacts, and provides superior traction on technical climbs with efficient pedaling.
FORCE SEPARATION
Sight’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

PRECISION KINEMATICS
Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 60mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.

SIZE & STYLE
Sight’s All-Mountain manners define Norco Ride Performance. With size-specific Rear- Centres & Seat Tube Angles unique to all 5 frame sizes, you’re sure to find the perfect fit for your size & style.
YOU DO YOU
Sight is available with dual 29” wheels and 29”/27.5” MX wheel models so you can toe the line, or let your hair down. Plus, you can buy the Missing Links later if you get curious about how the other side rides.

CARBON FRAME
Full carbon fibre frame and stays are engineered to optimize strength, stiffness and light weight, ensuring you hit the line you want every time and intuitively navigate the toughest terrain.

RIDE ALIGNED™
Perfect fit, dialed handling and personalised setup in minutes.
The Ride Aligned™ Design System matches each Sight to the human who rides it with Rider-First geometry and suspension that’s precision tuned in minutes to you and terrain you ride with the Ride Aligned™ Bike Setup Guide.
SPECIFICATION
FRAME | Sight Full Carbon, High Pivot Horst Suspension, 150mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
FORK | RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm Offset, Fender Included |
REAR SHOCK | Rockshox Vivid 2 Ultimate Air |
HEADSET | FSA #57 E, Sealed Bearing |
GRIPS | DMR DeathGrip |
HANDLE BAR | 6061 Alloy, 800mm, 25mm Rise |
STEM | Alloy, 40mm Length, 35mm Clamp |
SEAT POST | TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) |
SADDLE | SDG Bel Air V3 |
FRONT BRAKE | SRAM Code Stealth Bronze, 4-Piston, Sintered Pads |
FRONT BRAKE ROTOR | SRAM Centerline 200mm |
REAR BRAKE | SRAM Code Stealth Bronze, 4-Piston, Sintered Pads |
REAR BRAKE ROTOR | SRAM Centerline 180mm |
BRAKE LEVERS | SRAM Code Stealth Bronze |
SHIFTER REAR | SRAM NX Eagle |
REAR DERAILLEUR | SRAM GX Eagle Lunar |
CASSETTE | SRAM PG1275 Eagle 10-52T |
CHAIN | SRAM SX Eagle |
CRANKSET | Truvativ Descendent 6K Eagle, 30T (29) / 32T (29"/27.5") 170mm |
BOTTOM BRACKET | SRAM DUB BSA Threaded |
CHAIN GUIDE | Norco idler guide cover and lower guard |
FRONT HUB SKEWER | Bear Pawls Sealed Bearing 15x110mm Boost, 6-bolt |
REAR HUB | Race Face Trace 12x148mm Boost, XD, 6-Bolt |
SPOKES/NIPPLES | DT Competition Butted Black Stainless |
RIMS | Stan's Flow S2, Black 32H, 29"/29", 29"/27.5" |
FRONT TYRE | Maxxis Minion DHF 2.5', 3C, MaxxTerra / EXO+ / TR, Folding |
REAR TYRE | Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding |
SEALANT | Stan's Sealant - 200ml |
VALVES | Universal 35mm Presta Valve Stem |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
1 | 2 | 3 | 4 | 5 | ||
WHEEL SIZE | 29" | |||||
RIDER HEIGHT (FT) | 5'1-5'5" | 5'4-5'8" | 5'7-5'11" | 5'10-6'2" | 6'1-6'5" | |
RIDER HEIGHT (CM) | 155.0-165.0 | 162.5-172.5 | 170.0-180.0 | 178.0-188.0 | 185.5-195.5 | |
TRAVEL (MM FRONT / MM REAR) | 160/150mm | |||||
REACH | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
STACK | 618 | 627 | 636 | 645 | 654 | |
HTA | HEAD TUBE ANGLE | 64.0 | ||||
OS | FORK OFFSET | 44 | ||||
ST | SEAT TUBE LENGTH | 350 | 370 | 385 | 430 | 445 |
STA | EFFECTIVE SEAT TUBE ANGLE | 77.00 | 77.25 | 77.50 | 77.75 | 78.00 |
RC | REAR CENTRE LENGTH | 426 | 430 | 434 | 438 | 442 |
BB | BOTTOM BRACKET DROP | 25/25 | ||||
BBH | BOTTOM BRACKET HEIGHT | 353 | ||||
HTT | HORIZONTAL TOP TUBE | 565 | 589 | 613 | 637 | 661 |
WB | WHEELBASE | 1186 | 1219 | 1253 | 1286 | 1319 |
SOH | STANDOVER | 673 | 679 | 685 | 708 | 720 |
HT | HEAD TUBE LENGTH | 105 | 115 | 125 | 135 | 145 |
TRAIL | 135 | |||||
RECOMMENDED SEATPOST DROP | 150 | 170 | 200 | 200 | 200 | |
MAXIMUM POST INSERTION | 250 | 270 | 300 | 300 | 330 | |
STEM LENGTH | 40 | |||||
CRANK LENGTH | 170 | |||||
TYRE SIZE | 2.35" - 2.6" | |||||
WATER BOTTLE COMPATIBLE | 1 x 750ml |
Brand | Norco |
---|
