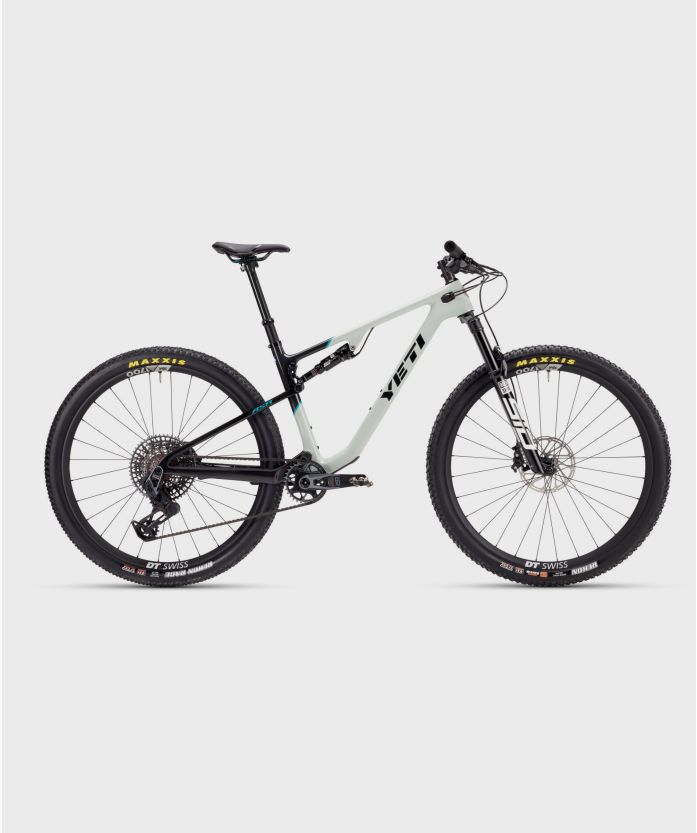

Yeti Cycles ASR T-Series T3 29" Bike
- TRADE ONLY ITEM
- Discipline: XC / Downcountry
- Material: Carbon Fibre
- Rear Travel: 115mm
- Fork Travel: 120mm
ASR
A decade ago we peaced out of the lycra game. While we were busy getting down, XC got a lot more X, calling for the comeback of a legend. Flashing a crazy-light, zero-redundant carbon layup that's far beyond the previously possible. Featuring 115mm of flex stay suspension for 100% usable travel, and energy saving small-bump compliance. Helping today's racers be faster where they have to be. On first blush it may appear to have peers, but don't get it twisted. The reincarnated ASR is a lot like nothing else..
115MM
FRAME TRAVEL
29"
WHEEL SIZE
66.5°
HEAD TUBE ANGLE
75.5°
EFF. SEAT ANGLE
FRAME HIGHLIGHTS
- ROCKSHOX SID LUXE ULTIMATE 3P REMOTE
- 66.5 - DEGREE head TUBE angle
- 75.5 - DEGREE SEAT TUBE ANGLE
- 115MM REAR TRAVEL PAIRED WITH A 120MM FORK
- SIZES XS-XL
- SUSPENSION LOCKOUT FRAME ROUTING
- Optional custom chain guide
- Threaded BB
- 28-36t Max (38t MD-XL) chainring compatibility
- Configurable cable routing ports
- 2 main frame waterbottles
- Integrated rear mud fender
MADE FOR WINNING THE WORLD.
The ASR is back to win at today’s world cup level. Super light and radically responsive with all the pedaling efficiency? Check.
But that’s just XC table stakes. The bike for modern XC needs modern geometry that’s just as stable tipping it over at 45 km/h as it excels on chest high drops and hugging the inside line on the steepest switchback climb.
SIZE GUIDE
| X-SMALL | 4'10" - 5'3" | |||||
| SMALL | 5'1" - 5'7" | |||||
| MEDIUM | 5'5" - 5'11" | |||||
| LARGE | 5'10" - 6'3" | |||||
| X-LARGE | 6'1" - 6'7" | |||||
| XX-LARGE | 6'5" - 6'11" |
SPECIFICATION
T / Series carbon fibre frame, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle.
| FORK | ROCKSHOX SID ULTIMATE 3P REMOTE 120MM |
| SHOCK | ROCKSHOX SIDLUXE ULTIMATE 3P REMOTE |
| TYRE (F) | MAXXIS REKON 2.4 EXO |
| TYRE (R) | MAXXIS REKON RACE 2.4 EXO |
| ROTOR (F) | SRAM CENTERLINE 180 |
| ROTOR (R) | SRAM CENTERLINE 160 |
| HEADSET | CANE CREEK 40 |
| WHEELSET | DT SWISS X1900 LN |
| GRIPS | ODI ELITE PRO |
| BAR | YETI CARBON BAR 35X800MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| CRANK | SRAM X0 EAGLE TRANSMISSION 32T 170MM |
| SEAT | WTB SOLANO CHOMOLY |
| BRAKES | SRAM MOTIVE SILVER |
| DERAILLEUR | SRAM X0 EAGLE AXS TRANSMISSION |
| CASSETTE | SRAM X0 EAGLE TRANSMISSION 10-52 |
| CHAIN | SRAM X0 EAGLE TRANSMISSION FLATTOP |
| SHIFTER | SRAM AXS POD CONTROLLER |
| SEATPOST | CRANK BROTHERS HIGHLINE 11/XS-SM: 100MM, MD: 125MM, LG-XL: 150MM |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 120MM FORK | XS | SM | MD | LG | XL | |
| A | SEAT TUBE LENGTH | 400 | 410 | 430 | 470 | 495 |
| B | EFF. TOP TUBE LENGTH | 554 | 574 | 600 | 623 | 653 |
| C | HEAD TUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D | EFF. SEAT TUBE ANGLE | 78 | 78 | 78 | 78 | 78 |
| E | ACTUAL SEATTUBE ANGLE | 70.4 | 70.8 | 71.2 | 71.6 | 72.1 |
| F | CHAINSTAY LENGTH | 433 | 435 | 437 | 439 | 441 |
| G | WHEELBASE | 1122 | 1144 | 1174 | 1201 | 1236 |
| H | ESTIMATED BB HEIGHT | 335 | 335 | 335 | 335 | 335 |
| I | STANDOVER | 768 | 768 | 771 | 771 | 776 |
| J | HEAD TUBE LENGTH | 92 | 92 | 101 | 111 | 133 |
| K | FORK (AXLE TO CROWN) | 530 | 530 | 530 | 530 | 530 |
| L | FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| M | STACK | 592 | 592 | 600 | 610 | 630 |
| N | REACH | 400 | 420 | 445 | 465 | 490 |
| O | FRONT CENTER | 689 | 709 | 737 | 762 | 795 |
| P | VERTICAL FORK TRAVEL | 110 | 110 | 110 | 110 | 110 |
| Brand | Yeti Cycles |
|---|
