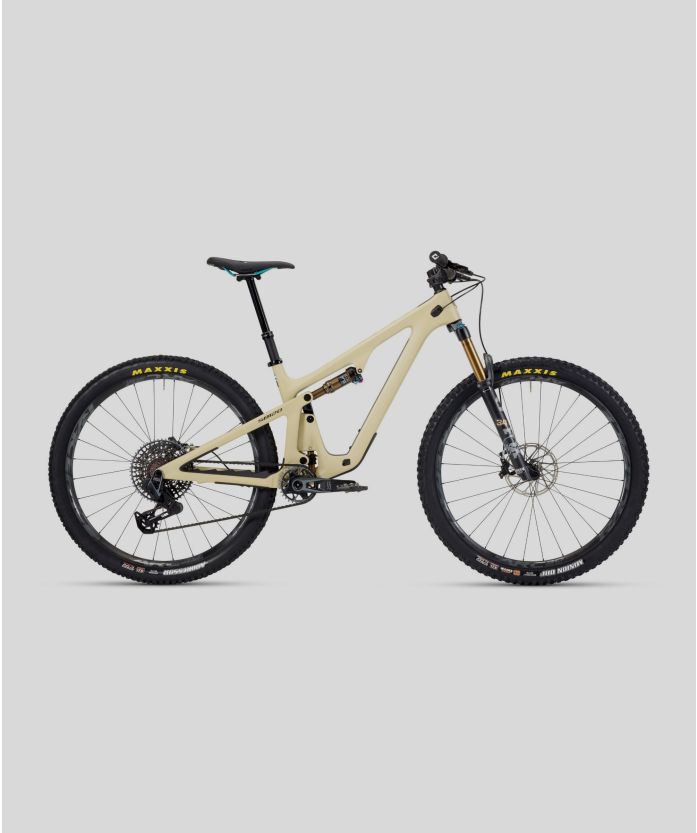

Yeti Cycles SB120 T-Series T3 29" Bike

X-SMALL

4'10" - 5'3"

5'1" - 5'7"

MEDIUM

5'5" - 5'11"

5'10" - 6'3"

X-LARGE

6'1" - 6'7"

XX-LARGE

6'5" - 6'11"

Name: Yeti Cycles SB120 T-Series T3 29" Bike
Brand: Yeti Cycles
Price: 8799 GBP
Availability: OutOfStock

Be the first to review this product

SKU

VAR-YCB24120TXSPDUFATE34300

Trade Only Item

Email me when back in stock

TRADE ONLY ITEM
Discipline: Trail / Downcountry
Material: Carbon Fibre
Rear Travel: 120mm / Fork Travel: 130mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Details

SB120

Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "Cross Country". Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the sb120 means to you. And you alone. Definition ready.

120MM

FRAME TRAVEL

11%

LEVERAGE RATE

29"

WHEEL SIZE

66.5°

HEAD TUBE ANGLE

76.5°

EFF. SEAT ANGLE

FRAME HIGHLIGHTS

NEW short travel trail frame platform
NEW Switch Infinity assembly on T-Series
NEW Threaded bottom bracket
NEW High-clearance downtube
NEW Dual-density downtube protection
Universal Derailleur Hanger (UDH)
Secure, fully enclosed internal cable management
Compatible with long dropper posts
100% standard sealed Enduro Max bearings
Floating collet axle pivot design
Ultra-compact shock extender
Boost spacing
Sizes XS-XXL

TRAIL. CHECK MATE.

Crushing souls on the descent is more than half the fun. And a hell of a lot more than half the point. The SB120 is wicked quick in your direction of choice.

SIZE GUIDE

SPECIFICATION

TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

FORK	FOX FACTORY 34 FIT4/130MM
SHOCK	FOX FACTORY FLOAT DPS
TYRE (F)	MAXXIS MINION DHF 2.5 EXO
TYRE (R)	MAXXIS AGGRESSOR 2.3 EXO
ROTOR (F)	SRAM CENTERLINE 180
ROTOR (R)	SRAM CENTERLINE 180
HEADSET	CANE CREEK 40 INTEGRATED
WHEELSET	RACEFACE ARC OFFSET 30MM/DT SWISS 350
BB	SRAM DUB BSA 73
GRIPS	ODI ELITE PRO
BAR	YETI CARBON 35X780MM
STEM	BURGTEC ENDURO MK3 35X50MM
CRANK	SRAM X0 EAGLE TRANSMISSION 30T 170MM
SADDLE	SILVERADO CUSTOM
BRAKES	SRAM G2 RSC
DERAILLEUR	SRAM X0 EAGLE AXS TRANSMISSION
CASSETTE	SRAM X0 EAGLE TRANSMISSION 10-52
CHAIN	SRAM X0 EAGLE TRANSMISSION FLATTOP
SHIFTER	SRAM AXS POD CONTROLLER
SEATPOST	FOX TRANSFER 31.6MM / 175MM

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

	130MM FORK	XS	SM	MD	LG	XL	XXL
A	SEAT TUBE LENGTH	345	365	400	440	470	485
B	EFF. TOP TUBE LENGTH	540	571	603	625	652	672
C	HEAD TUBE ANGLE	66.5	66.5	66.5	66.5	66.5	66.5
D	EFF. SEAT TUBE ANGLE	76.5	76.5	76.5	76.5	76.5	76.5
E	ACTUAL SEATTUBE ANGLE	71.1	71.5	71.9	72.3	72.7	73.2
F	CHAINSTAY LENGTH	433	435	437	439	441	443
G	WHEELBASE	1122	1157	1191	1217	1249	1274
H	ESTIMATED BB HEIGHT	335	335	335	335	335	335
I	STANDOVER	699	709	714	718	720	725
J	HEAD TUBE LENGTH	92	98	104	115	126	147
K	FORK (AXLE TO CROWN)	544	544	544	544	544	544
L	FORK (OFFSET)	44	44	44	44	44	44
M	STACK	604	610	615	625	635	655
N	REACH	395	425	455	475	500	515
O	FRONT CENTER	689	722	754	778	808	831
P	VERTICAL FORK TRAVEL	119	119	119	119	119	119
