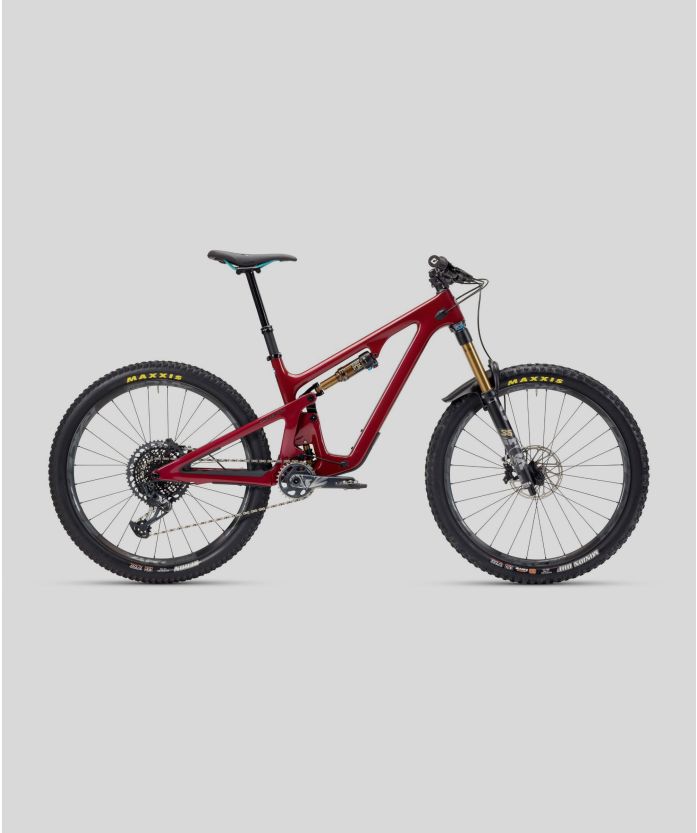

Yeti Cycles SB135 T-Series T2 27.5" Bike

Name: Yeti Cycles SB135 T-Series T2 27.5" Bike
Brand: Yeti Cycles
Price: 7799 GBP
Availability: OutOfStock

Be the first to review this product

SKU

VAR-YCB24135TXSPCYFAT026500

Trade Only Item

Email me when back in stock

TRADE ONLY ITEM
Discipline: Trail
Material: Carbon Fibre
Rear Travel: 135mm / Fork Travel: 150mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Add to Wish List

Details

SB135

Begging for your input, chomping to respond. Flick it, pedal it, pump it to the moon. A stoke-making mutation of fun-focused DNA, blinding proof that less can be a whole lot more. Come out to play. You bet your ass the SB135 is... still down.

135MM

FRAME TRAVEL

150MM

FORK TRAVEL

14%

LEVERAGE RATE

27.5"

WHEEL SIZE

65.4°

HEAD TUBE ANGLE

77°

EFF. SEAT ANGLE

HIGHLIGHTS

Builds featuring 150MM Fox Factory 36 Fit 4 & Fox Float
Maxxis DHF 2.6 EXO & Maxxis Rekon 2.6 EXO
Fox Transfer dropper post
DT Swiss CUSTOM EX Wheels
4 piston brakes
ODI Elite Pro grips
180 front and rear rotor

FRAME HIGHLIGHTS

NEW Threaded bottom bracket
NEW High-clearance downtube
NEW Dual-density downtube protection
Universal Derailleur Hanger (UDH)
Secure, fully enclosed internal cable management
Compatible with long dropper posts
100% standard sealed Enduro Max bearings
Floating collet axle pivot design
Compact-wishbone shock extender
Boost spacing
Lunch Ride available in sizes MD-XL

DART. WEAVE. DRIFT.

There's main lines and race lines. And then there's the completely unexpected lines that requires a rider with a different headspace all together. Riders looking to find the fun love of the SB135 for its quick-witted playfulness, agility and its ability to unlock creativity.

SIZE GUIDE

MEDIUM	5'5" - 5'11"
LARGE		5'10" - 6'3"
X-LARGE			6'1" - 6'7"

SPECIFICATION

C/Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

FRAME MATERIAL	TURQ SERIES
FORK	FOX FACTORY FOX FACTORY 36 FIT 4/150MM
SHOCK	FOX FACTORY FLOAT
WHEELSET	RACEFACE ARC OFFSET 30MM/DT SWISS 350
REAR DER	SRAM X01 EAGLE
SHIFT	SRAM X01 EAGLE
CRANK	SRAM X1 EAGLE CARBON 30T 170MM SRAM XX
CASSETTE	SRAM X01 EAGLE 1295 10-52 SRAM XX
CHAIN	SRAM GX EAGLE
BRAKES	SRAM G2 RSC SRAM G2
ROTOR F/R	SRAM CENTERLINE 180/SRAM CENTERLINE 180
POST	FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XL: 200MM
TYRE F/R	MAXXIS MINION DHF 2.6 EXO / MAXXIS REKON 2.6 EXO
HEADSET	CANE CREEK 40 INTEGRATED
BAR	YETI CARBON 35X760MM
STEM	BURGTEC ENDURO MK3 35X50MM
GRIPS	ODI ELITE PRO
SADDLE	SILVERADO CUSTOM

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

	160MM FORK	MD	LG	XL
A	SEAT TUBE LENGTH	400	440	470
B	EFF. TOP TUBE LENGTH	569	621	649
C	HEAD TUBE ANGLE	65.4	65.4	65.4
D	EFF. SEATTUBE ANGLE	77	77	77
E	ACTUAL SEATTUBE ANGLE	71.6	71.6	71.9
F	CHAINSTAY LENGTH	433	435	437
G	WHEELBASE	1203	1229	1261
H	ESTIMATED BB HEIGHT	340	340	340
I	STANDOVER	718	721	725
J	HEADTUBE LENGTH	107	118	129
K	FORK (AXLE TO CROWN)	558	558	558
L	FORK (OFFSET)	37	37	37
M	STACK	600	610	620
N	REACH	455	475	500
O	FRONT CENTER	770	794	824
P	VERTICAL FORK TRAVEL	145	145	145
