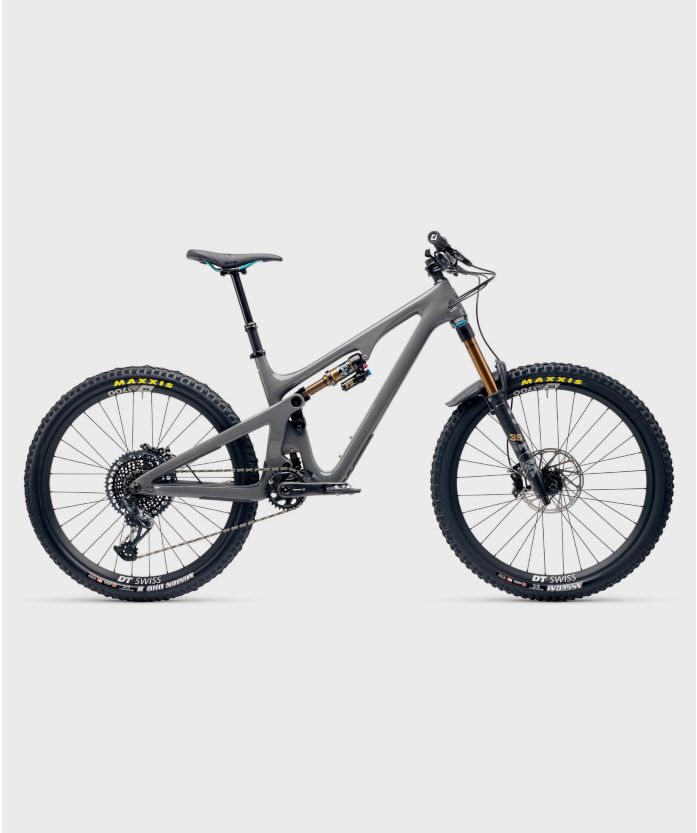

Yeti Cycles SB140 T-Series T1 Lunch Ride 27.5" Bike
SKU
VAR-YCB23147TSMPBLFXT056600
Trade Only Item
- TRADE ONLY ITEM
- Discipline: Trail
- Material: Carbon Fibre
- Rear Travel: 140mm / Fork Travel: 160mm
SB140 LR
Some say the SB140 never met a dirt it didn't like. We agree in spades. What's your pleasure? Drag a bar. Make an edit. Stay out after dark. Dust off the blueprints for the loop-de-loop. Try it. Land it. Or just stay at it. The undisputed champion of up to no good. Toboggan run, anyone? Happy to pedal. Greedy for more. Boost confidence as you boost everything. The mayor of Jibtown, proudly wearing the RIP crown. The SB140.
Down for fun.
140MM
FRAME TRAVEL
160MM
FORK TRAVEL
27.5"
WHEEL SIZE
65°
HEAD TUBE ANGLE
HIGHLIGHTS
- Lunch Ride (LR) builds featuring 160mm Fox Factory
36, Fox Float X,
Maxxis ASSEGAI 2.5 & DHR II 2.4 EXO+ casing, and
more powerful brakes with larger rotors - Fox Transfer dropper post
- DT Swiss CUSTOM EX Wheels
- 4 piston brakes
- ODI Elite Pro grips
- 200 front and rear rotor
FRAME HIGHLIGHTS
- 65-degree head angle
- 77-degree seat tube angle
- Boost spacing
- Internal cable routing
- Integrated headset
- Short fork offset design
- In frame water bottle mount
- Tyre clearance for 2.6"
- Offered in XS
THROW WHAT YOU
WANT AT IT, WEIRDO.
SIZE GUIDE
| X-SMALL | 4'11" - 5'3" | ||||
| SMALL | 5'1" - 5'7" | ||||
| MEDIUM | 5'5" - 5'11" | ||||
| LARGE | 5'10" - 6'3" | ||||
| X-LARGE | 6'1" - 6'7" |
SPECIFICATION
TURQ Series carbon fibre frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
| FORK | FOX FACTORY 36 GRIP 2/160MM |
| SHOCK | FOX FACTORY FLOAT X |
| TYRE (F) | MAXXIS ASSEGAI 2.5 EXO+ |
| TYRE (R) | MAXXIS MINION DHR II 2.4 EXO+ |
| ROTOR (F) | SRAM CENTERLINE 200 |
| ROTOR (R) | SRAM CENTERLINE 200 |
| HEADSET | CANE CREEK 40 INTEGRATED |
| WHEELSET | DT SWISS CUSTOM EX1700 30MM |
| BB | SRAM DUB BB92 |
| GRIPS | ODI ELITE PRO |
| BAR | YETI CARBON 35X780MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| CRANK | SRAM X1 EAGLE 30T 170MM |
| SADDLE | SILVERADO CUSTOM |
| BRAKES | SRAM CODE RSC |
| DERAILLEUR | SRAM X01 EAGLE |
| CASSETTE | SRAM GX EAGLE 1275 10-52 |
| CHAIN | SRAM GX EAGLE |
| SHIFTER | SRAM GX EAGLE |
| SEATPOST | Â FOX TRANSFER 31.6MM / 175MM |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 160MM FORK | XS | SM | MD | LG | XL | |
| A | SEAT TUBE LENGTH | 355 | 380 | 410 | 450 | 495 |
| B | EFF. TOP TUBE LENGTH | 538.2 | 567 | 598.5 | 621.5 | 649.4 |
| C | HEAD TUBE ANGLE | 65 | 65 | 65 | 65 | 65 |
| D | EFF. SEAT TUBE ANGLE | 77.1 | 77 | 77 | 77 | 76.9 |
| E | CHAINSTAY LENGTH | 433 | 433 | 433 | 433 | 433 |
| F | WHEELBASE | 1144.8 | 1175.9 | 1208.2 | 1232.9 | 1262.6 |
| G | ESTIMATED BB HEIGHT | 339.9 | 339.9 | 339.9 | 339.9 | 339.9 |
| H | STANDOVER | 702.4 | 707.6 | 710 | 712.3 | 714.7 |
| I | HEADTUBE LENGTH | 95.5 | 109.9 | 115.4 | 126.4 | 137.5 |
| J | FORK (AXLE TO CROWN) | 549.1 | 549.1 | 549.1 | 549.1 | 549.1 |
| K | FORK (OFFSET) | 37.5 | 37.5 | 37.5 | 37.5 | 37.5 |
| L | STACK | 581.9 | 594.9 | 599.9 | 609.9 | 619.9 |
| M | REACH | 405.1 | 430.1 | 460.1 | 480.1 | 505.1 |
| N | FRONT CENTER | 711.8 | 742.9 | 775.2 | 799.9 | 829.6 |
| O | VERTICAL WHEEL TRAVEL | 145 | 145 | 145 | 145 | 145 |
| Brand | Yeti Cycles |
|---|
