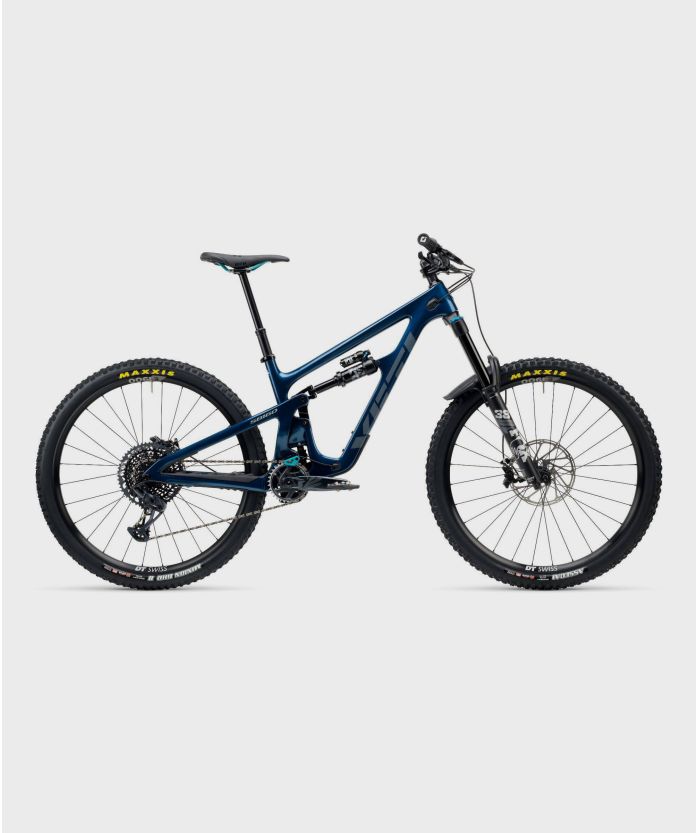

Yeti Cycles SB160 C-Series C2 29" Bike

Yeti Cycles
SKU
VAR-YCB24160CSMPCBPXC028700
From £5,999.00 £4,999.17
Trade Only Item
  • TRADE ONLY ITEM
  • Discipline: Enduro
  • Material: Carbon Fibre
  • Rear Travel: 160mm / Fork Travel: 170mm

SB160


Upholding a time-tested, race-bred ethos that says nothing should hold a rider back from the sheer joy of untethered speed. Built off one of the most winning race platform in EWS history, the sb160 is pure race machinery. Honed for more. Be fastest.

160MM

FRAME TRAVEL

170MM

FORK TRAVEL

17%

LEVERAGE RATE

29"

WHEEL SIZE

64°

HEAD TUBE ANGLE

77.5°

EFF. SEAT ANGLE

HIGHLIGHTS

  • Fox Factory 38 & Fox Float X2 Shock
  • Fox Transfer dropper post
  • DT Swiss EX Wheels
  • 4 piston brakes
  • ODI Elite Pro grips
  • 220 front and 200 rear rotors for max stopping power
  • Maxxis Assegai 2.5 & Minion DHR 2.4 EXO+ casing
  • Downhill tested and used by the Yeti Fox Factory team

FRAME HIGHLIGHTS

  • NEW Switch Infinity assembly on T-Series
  • NEW Threaded bottom bracket
  • NEW High-clearance downtube
  • NEW Dual-density downtube protection
  • Universal Derailleur Hanger (UDH)
  • Secure, fully enclosed internal cable management
  • Compatible with long dropper posts
  • 100% standard sealed Enduro Max bearings
  • Floating collet axle pivot design
  • Compact-wishbone shock extender
  • Downhill tested
  • Yeti/Fox Factory team approved
  • Boost spacing
  • Sizes S-XXL

FROM LEGACY TO DYNASTY

The Yeti/Fox Factory Team won 51 EWS stages, 12 EWS races, and 1 national series championships aboard the SB150. The SB160 builds momentum on this legacy of excellence. Honed. Refined. Even effing faster.

SIZE GUIDE

SMALL 5'1" - 5'7"
MEDIUM 5'5" - 5'11"
LARGE 5'10" - 6'3"
X-LARGE 6'1" - 6'7"
XX-LARGE 6'5" - 6'11"

SPECIFICATION

C/Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

FORK FOX PERFORMANCE 38/170MM
SHOCK FOX PERFORMANCE FLOAT X
TYRE (F) MAXXIS ASSEGAI 2.5 EXO+
TYRE (R) MAXXIS MINION DHR II 2.4 EXO+
ROTOR (F) SRAM CENTERLINE 220
ROTOR (R) SRAM CENTERLINE 200
HEADSET CANE CREEK 40 INTEGRATED
WHEELSET DT SWISS E1900 30MM
BB SRAM DUB BSA 73
GRIPS ODI ELITE PRO
BAR BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM 35MM RISE
STEM BURGTEC ENDURO MK3 35X50MM
CRANK SRAM GX EAGLE 30T 170MM
BASH GUARD ONEUP BASH GUIDE
SEAT SILVERADO CUSTOM
BRAKES SRAM CODE R
DERAILLEUR SRAM GX EAGLE
CASSETTE SRAM GX EAGLE 1275 10-52
CHAIN SRAM GX EAGLE
SHIFTER SRAM GX EAGLE
SEATPOST ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM

Please note: Specifications are subject to change without notice.



GEOMETRY

All measurements are shown in millimetres.


SMMDLG XL XXL
A SEAT TUBE LENGTH 365 400 440 470 485
B EFF. TOP TUBE LENGTH 571 602 624 651 670
C HEAD TUBE ANGLE 64 64 64 64 64
D EFF. SEATTUBE ANGLE 77.5 77.5 77.5 77.5 77.5
E ACTUAL SEATTUBE ANGLE 72.1 72.6 72.7 73.1 73.6
F CHAINSTAY LENGTH 437 439 441 443 445
G WHEELBASE 1211 1246 1270 1302 1329
H ESTIMATED BB HEIGHT 353 353 353 353 353
I STANDOVER 735 744 750 756 757
J HEADTUBE LENGTH 95 101 107 118 140
K FORK (AXLE TO CROWN) 588 588 588 588 588
L FORK (OFFSET) 44 44 44 44 44
M STACK 615 620 625 635 655
N REACH 435 465 485 510 525
O FRONT CENTER 774 807 829 859 884
P VERTICAL FORK TRAVEL 153 153 153 153 153
